Napoleon Crystallo Top/Rear Direct-Vent Gas Fireplace | BGD36CFGN-2 |


Discontinued model available while supplies last!

Free Shipping Tax Free Authorized Napoleon Dealer

A clean face design with an exclusive CRYSTALINE™ ember bed embraces Napoleon’s new collection of modern fireplaces. The Crystallo™ provides inspiration to create a hearth experience that focuses on warmth, beauty and style. The Crystallo™ comes standard with MIRRO-FLAME™ Porcelain Reflective Radiant Panels and a multi-function LED spectrum light strip. The LED light strip transitions through the entire RGB color range or can be set to any color (including white) that suits your décor and act as an exclusive NIGHT LIGHT™. A unique hearth idea that sparkles with modern elegance!

Crystallo Gas Fireplace Brochure


  • New LED lights transition between colors or can be set to the color of your choice including white to match any decor
  • Cost saving electronic ignition with battery back up
  • Convenient on/off switch and built-in adjustable flame/heat control
  • Back-up control system ensures reliable use, even during power failures
  • Safety Screen Included
  • MIRRO-FLAME Porcelain Reflective Radiant Panels, also standard with the unit
  • Certified for bathrooms, bedrooms and mobile homes
Napoleon Crystallo Top/Rear Direct-Vent Gas Fireplace | BGD36CFGN-2 | Technical Details


Product Details

Fuel Type: Gas
Vent Type: Direct Vent
Vent Size: 4x7
Ignition Type: Electronic
Installation Type: Zero Clearance
Style: Traditional
Vent Inner Diameter: 4 Inches
Vent Outer Diameter: 7 Inches
Model: Natural Gas (NG) Propane (LP)
Max. (BTU/HR): 17,000 BTU's 17,000 BTU's
Min. (BTU/HR): 10,900 BTU's 10,900 BTU's
Napoleon Crystallo Top/Rear Direct-Vent Gas Fireplace | BGD36CFGN-2 | Dimensions


Actual Dimensions

Height Width Depth
381/2" 40" 17"

Framing Dimensions

Height Width Depth
383/4" 401/2" 171/4"

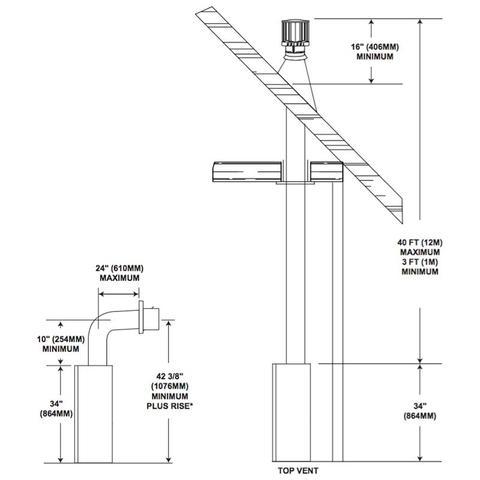

Technical Drawings

For more detail please see the Installation Manual

BGD36 Technical Drawing 1
BGD36 Technical Drawing 2


1. Do I need to purchase a panel or trim kit with the fireplace?

No, these are optional accessories to enhance the look of the Crystallo. The fireplace can be purchased without adding any additional features and installed as a clean face unit.

2. How will the fireplace be delivered? Will the delivery driver bring it into my house?

All fireplaces are delivered via freight (tractor trailer truck) to the specified street address you provide us, we do provide free lift gate service with all freight deliveries. The delivery driver is only responsible for unloading the items from the truck, not to move them anywhere. For more information on the delivery process visit our FAQ page.

3. What color is the glass media?

The fireplace includes clear glass media which when used with the multi color LED's you can create any color imaginable. There are alternative glass kits as well, you can find these on the Crystallo Accessories page.

4. How is the fireplace vented?

The Crystallo is typically vented using Napoleon's 4x7 venting components, you can find them here. If you need help designing the venting system let us know with an email or a phone call and we can assemble a custom solution for your situation.

Questions & Answers

Ask a Question
  • Does this come with a blower unit?

    A blower is not included with this fireplace, but there is one available.  The appropriate model is the B440-KT.  Thanks for your question!
