Dimplex Ignite XL Bold 100 Inch Electric Linear Fireplace - XLF10017
Dimplex Ignite XL Bold 100 Inch Electric Linear Fireplace - XLF10017
SKU:XLF10017-XD
Free Shipping on $99+ - No Tax
Couldn't load pickup availability
YOUR LOCAL AUTHORITY HAVING JURISDICTION MAY ENFORCE BUILDING CODES UNIQUE TO YOUR LOCALE.
REMEMBER: CONFORMITY TO YOUR LOCAL BUILDING CODES IS ULTIMATELY YOUR RESPONSIBILITY. THUS, THE IMPORTANCE OF WORKING WITH PROFESSIONALS LICENSED BY YOUR STATE LICENSING BODY.
Design to impress with the IgniteXL Bold Linear Electric Fireplace. This modern, built-in fireplace creates the illusion of incredible depth, while advanced controls maximize enjoyment and allow you to add your own personalized touch. With industry leading flexible installation options in one design; or make a bold statement and connect multiple units together for a grand, modern masterpiece.
Dimplex XLF10017 Brochure
See all IgniteXL Bold accessories here
Features
- Multi-Fire XD Flame Effect - Vivid flames that are brighter and more lifelike day or night, featuring a new multi-layered color effect that creates a sense of depth. Color settings can be controlled independently.
- Media Accent Color/Top Light - Customize the fireplace interior by adjusting the media bed and top light - select from a range of preset colors or scroll through Prism mode and freeze on your favorite look.
- Modern Media Bed - A stylish multi-media bed includes small and large acrylic crystals with naturallooking driftwood.
- Bigger, Better Viewing - Elevate fireplace enjoyment with an impressive 16" (40.6 cm) high viewing area.
- Comfort$aver Heating System - Concealed heater with safe ceramic heat, plus 11% energy savings, warms up to 1,000 sq. ft.
- Eco/Heat Boost Eco - reduces the wattage range to maintain a comfortable heat setting, while boost quickly warms a room using maximum heat output for up to 20 minutes.
- Air Circulation Mode - A smart feature that moves room air to keep it fresher.
- Ambient Light Sensor - Automatically adjusts firebox light to suit the room day to night.
- Built-in Timer - Set timer to automatically shut off the fireplace after a preset time, up to 8 hrs.
- Heat Management - Enjoy the ambiance of a fire during the warmer months by deactivating the heater via the controls; or hard disconnect the heater during installation where heat is not required.
- Smart Self-Diagnostics - Integrated smart technology that works behind the scenes to enhance the performance of your fireplace by providing maintenance and operation feedback.
- Hardwire or Plug-in - Designed to be direct-wired to a 120 or 240 volt circuit for a seamless look (120V has optional plug kit available).
Dimensions
Dimensions
Actual Dimensions |
||
| Height | Width | Depth |
|---|---|---|
| 237/8" | 991/4" | 113/8" |
Framing Dimensions |
||
| Height | Width | Depth |
| 241/4" | 993/4" | 115/8" |
Specifications
Specifications
| Fuel Type: | Electric | |
|---|---|---|
| Vent Type: | Vent-Free | |
| Ignition Type: | Electronic | |
| Installation Type: | Recessed | |
| Style: | 3-Sided | |
| Weight: | 443 lbs. | |
| BTU's @ 120V: | 5000 BTU's | |
| BTU's @ 240V: | 8530 BTU's | |
| Amps: | 10.4 Amps | |
| Watts: | Max 2500W | |
| High Temp Setting: | 86°F | |
| Low Temp Setting: | 45°F | |
| No Heat Setting: | Yes | |

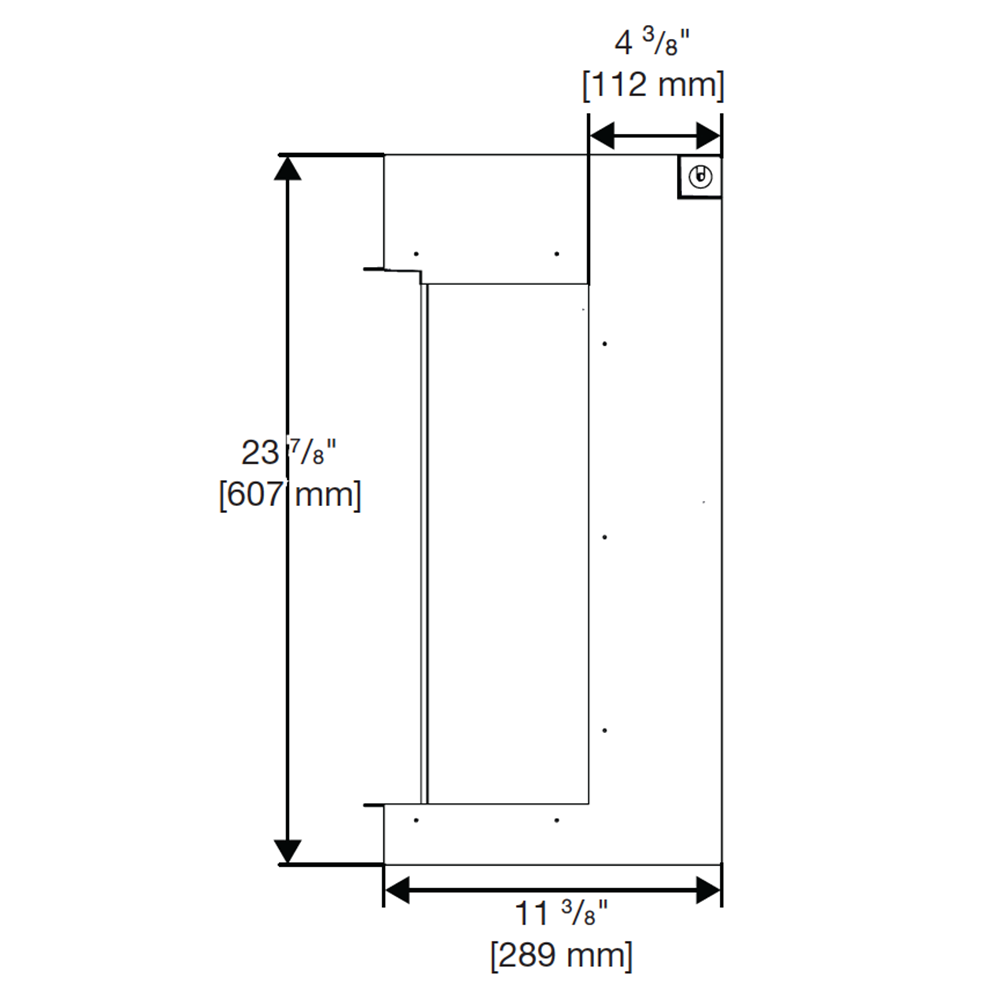

Technical Drawings
Technical Drawings
Installation Manual
Installation Manual
To Open the Installation Manual in another Window => Click Here
Warranty Policy
Warranty Policy
Exclusions from Warranty Coverage
- Provision of warranty services at the customer's location (on-site or in-home).
- Costs associated with removing parts prior to replacement.
- Installation of replacement parts or complete units.
- Labor expenses for diagnosing issues with potentially defective components.
- Initial installation costs and labor associated with installing warranty replacement parts.
- Expenses related to shipping and transportation for replacement parts or units.
To Open the Warranty Policy in another Window => Click Here

Prop 65 All Brands
Please see below for specific product warning labels. For additional information, please visit www.P65Warnings.ca.gov
