IgniteXL stands apart as more lifelike and visually stunning than any other electric fireplace. With new, patented flame technology, IgniteXL captures the charm and ambiance of a real fire. Edge-to-edge glass offers a flawless panoramic view of the dazzling flames from any angle. At only 5.5 inches deep, and with no chimney or gas line required, IgniteXL is ideal for home or high rise installations.

Ignite Series Brochure

Features

  • Comfort$aver‚® Heating System-The patented Comfort$aver‚® ceramic heating system uses 11% less energy than the leading quartz infrared heater by automatically adjusting fan speed and heater wattage to safely and precisely match the requirements of the room.
  • Color Themes-Choose from a variety of brilliant color themes or cycle through a range of colors using the prism mode, freezing on the hue of your choice.
  • Multi-Function Remote- Control 100% of the fireplace features from the comfort of your chair.
  • Heat Boost- Quickly warms a room by delivering maximum heat output for a pre-determined amount of time.
  • Year-round Comfort- Enjoy the ambiance of the flame with or without the heater for year-round comfort and enjoyment.
  • Built-in Touch Controls- Backlit controls are hidden when not in use.
  • Multi-Fire XD‚® Flame Effect- A true alternative to gas, the patented Multi-Fire XD flame effect accurately reproduces a natural flame.

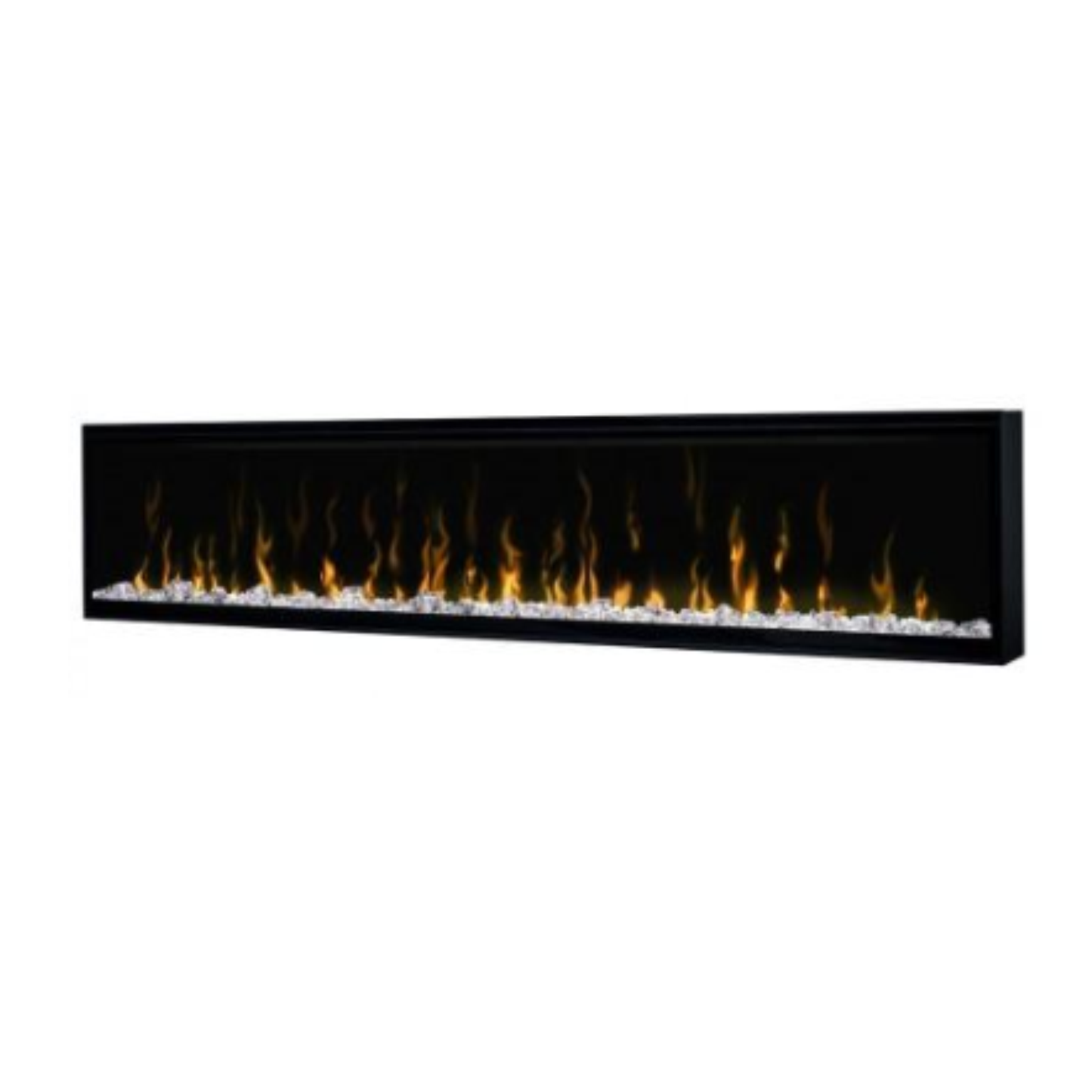

Dimplex IgniteXL 74 Inch Wall Mount Linear Electric Fireplace | XLF74 | Technical Details

Specifications

Product Details

Fuel Type: Electric
Vent Type: Vent Free
Installation Type: Partial Recess or Full Recess
Style: Linear
Weight: 104 lbs.
BTU's @ 120V: 5118 BTU's
BTU's @ 240V: 8530 BTU's
Amps: 12.5 Amps
Watts: Max 2500W
High Temp Setting: 99°F
Low Temp Setting: 41°F
No Heat Setting: Yes
Dimplex IgniteXL 74 Inch Wall Mount Linear Electric Fireplace | XLF74 | Dimensions

Dimensions

Actual Dimensions

Height Width Depth
161/2" 752/5" 54/5"

Framing Dimensions

Height Width Depth
16" 745/8" 51/2"

Technical Drawings

For more detail please see the Installation Manual

XLF74 Technical Drawing 1
XLF74 Technical Drawing 2

FAQ's

How will this fireplace be sent to my house?

The Ignite XL will be shipped via freight truck. The fireplace will be securely packaged and inspected before it leaves the facilities. For this type of delivery it is necessary for you or someone you choose to be available at the time and place of the delivery. Read more about how freight shipping works on our FAQ page.

Can this fireplace be recessed into the wall?

Yes, the Ignite XL is designed to be recessed into the wall. This model can not be hung on the wall.

What are the electrical requirements?

The Ignite XL requires a 15 AMP, 120V or 240V ciruit. It is not required, but recommended that the circuit be dedicated, as additional electrical draw from other appliances may trip the breaker. The Ignite XL must be hard wired.

Please let us know if you have any further questions with an email or a phone call, we're here to help!

Questions & Answers

Ask a Question
  • I see the Dimplex XLF74 can be wired either 110 or 220. We have a dedicated 20 amp 110 line at the install site, is there any advantage to using 220? Thanks

    The only advantage is the larger heat output, otherwise it's all the same.  Thanks for your question!
