Designed for in-wall or mantel installation, Loft Medium Direct-Vent fireplaces feature state-of-the-art technology for extraordinary performance.

Flickering yellow flames dance atop the linear burner reflecting light off the glass and the porcelain liner to create a nearly infinite flame effect making your Loft Medium Direct-Vent fireplace mesmerizing from any angle.

Loft Series Brochure


  • See all available accessories here
  • Up to 23,000 BTUs
  • Includes black reflective porcelain liner and burners
  • Available in Millivolt with On/Off Switch or Intermittent Pilot with On/Off Switch
  • Tailor your Loft fireplace to your decor with one of two surrounds or the Eclipse front
Empire Loft Medium Direct Vent Gas Fireplace | DVL33FP | Technical Details


Product Details

Fuel Type: Gas
Vent Type: Direct Vent
Vent Size: 4x6-5/8
Ignition Type: Millivolt or Electronic
Installation Type: Zero Clearance
Style: Linear
Vent Inner Diameter: 4 Inches
Vent Outer Diameter: 6-5/8 Inches
Weight: 99 lbs.
Model: Natural Gas (NG) Propane (LP)
Max. (BTU/HR): 23,000 BTU's 23,000 BTU's
Min. (BTU/HR): 18,000 BTU's 16,000 BTU's
Empire Loft Medium Direct Vent Gas Fireplace | DVL33FP | Dimensions


Actual Dimensions

Height Width Depth
29" 401/2" 163/4"

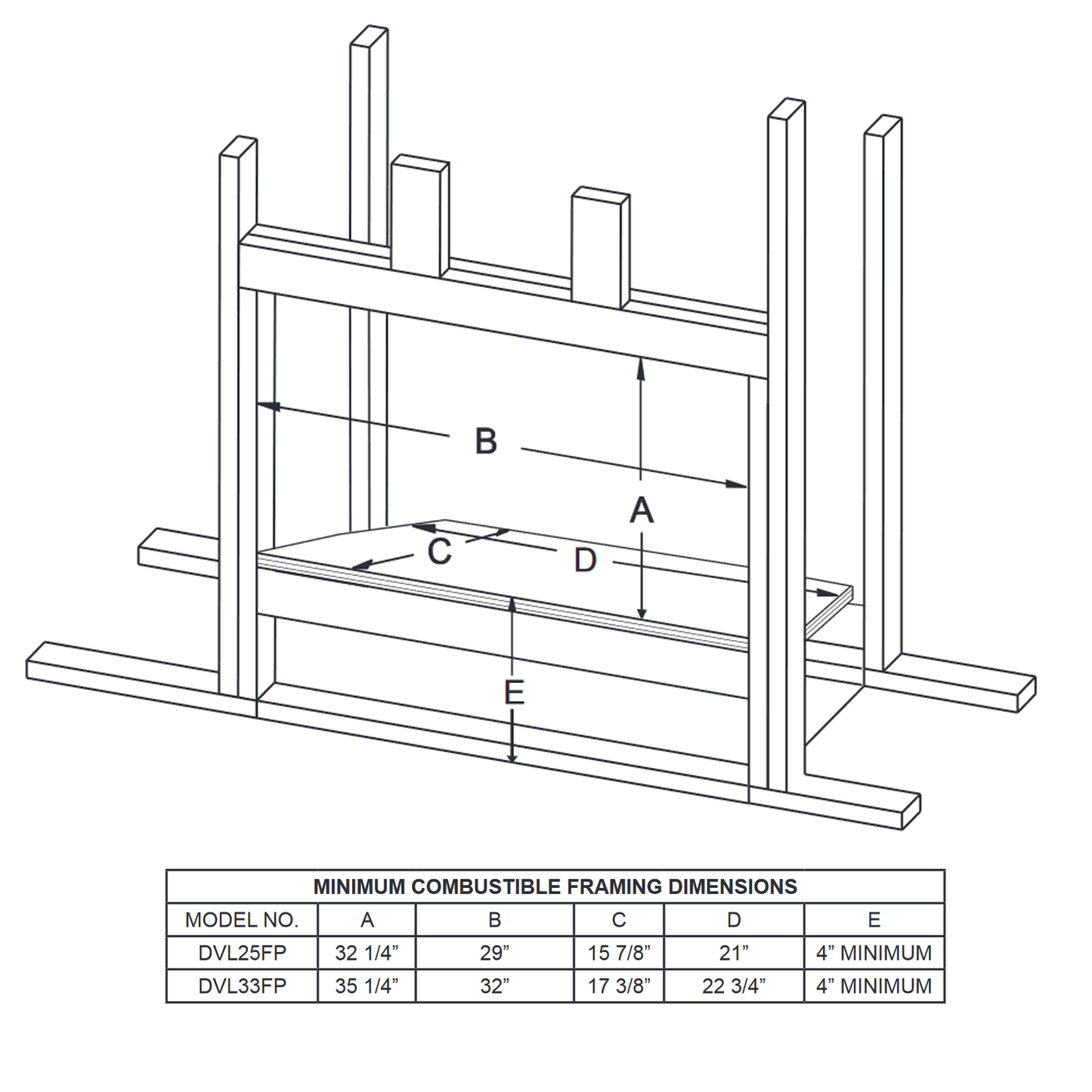

Framing Dimensions

Height Width Depth
351/4" 32" 173/8"

Technical Drawings

For more detail please see the Installation Manual

DVL33 Technical Drawing 1
DVL33 Technical Drawing 2


1. What is the difference between the ignition types?

Millivolt systems operate without electricity to provide heat even in a power outage and operate with an optional on-off remote control or wall switch. The Intermittent Pilot (IP) system improves efficiency by eliminating the standing pilot light. IP systems include an on/off switch - add a remote control to light your fireplace from anywhere in the room. In the event of a power outage, your IP system can operate using a battery back up.

2. Why am I required to purchase a surround/frame and front with the fireplace at additional cost?

The front or surround includes the required safety barrier to prevent accidental burns. Without a front or surround, your fireplace would not function correctly and would look incomplete. These items are an additional cost to allow you to choose which look you like best.

3. How will the fireplace be delivered? Will the delivery driver bring it into my house?

All fireplaces are delivered via freight (tractor trailer truck) to the specified street address you provide us, we do provide free lift gate service with all freight deliveries. The delivery driver is only responsible for unloading the items from the truck, not to move them anywhere. For more information on the delivery process visit our FAQ page.

4. Where are the accessories for this fireplace?

You can find all of the available options on the accessories page.

5. How is the fireplace vented?

The Loft Medium DVL33 is typically vented using DuraVent 4x6-5/8 venting components. If you need help designing the venting system let us know with an email or a phone call and we can assemble a custom solution for your situation.
