Authentic Style, Unmatched Ease

Traditional has never been this easy. A detailed masonry-style interior, textured log set and 4 flame height adjustments enhance the appeal of these two classic models. Enjoy the ambiance with or without the heat. Experience "Fire Made Simple."

Built In Electric Fireplace Brochure

Features

  • See all available accessories here
  • 100% efficient- costs just pennies an hour to operate. Use with or without heat
  • The SimpliFire 30-inch built-in model allows zero-clearance installation
  • Efficient LED flame technology means the bulbs never need to be changed
  • Intuitive, multi-function remote included with all SimpliFire fireplaces allows flame and heat control
  • 4,800 BTU heat output is perfect for zone heating your space
  • Optional Black Front offers a tailored appearance to the hearth, and the black finish complements any home decor.

Monessen SimpliFire 30 inch Electric Built-In Fireplace | SF-BI30-EB | Technical Details

Specifications

Product Details

Fuel Type: Electric
Vent Type: Vent Free
Installation Type: Built In
Style: Traditional
BTU's @ 120V: 4,800 BTU's
BTU's @ 240V: 10,000 BTU's
Amps: 15 Amps
Watts: Max 2800W
High Temp Setting: 82°F
Low Temp Setting: 61°F
No Heat Setting: Yes
Monessen SimpliFire 30 inch Electric Built-In Fireplace | SF-BI30-EB | Dimensions

Dimensions

Actual Dimensions

Height Width Depth
283/4" 33" 113/4"

Framing Dimensions

Height Width Depth
31" 32" 115/8"

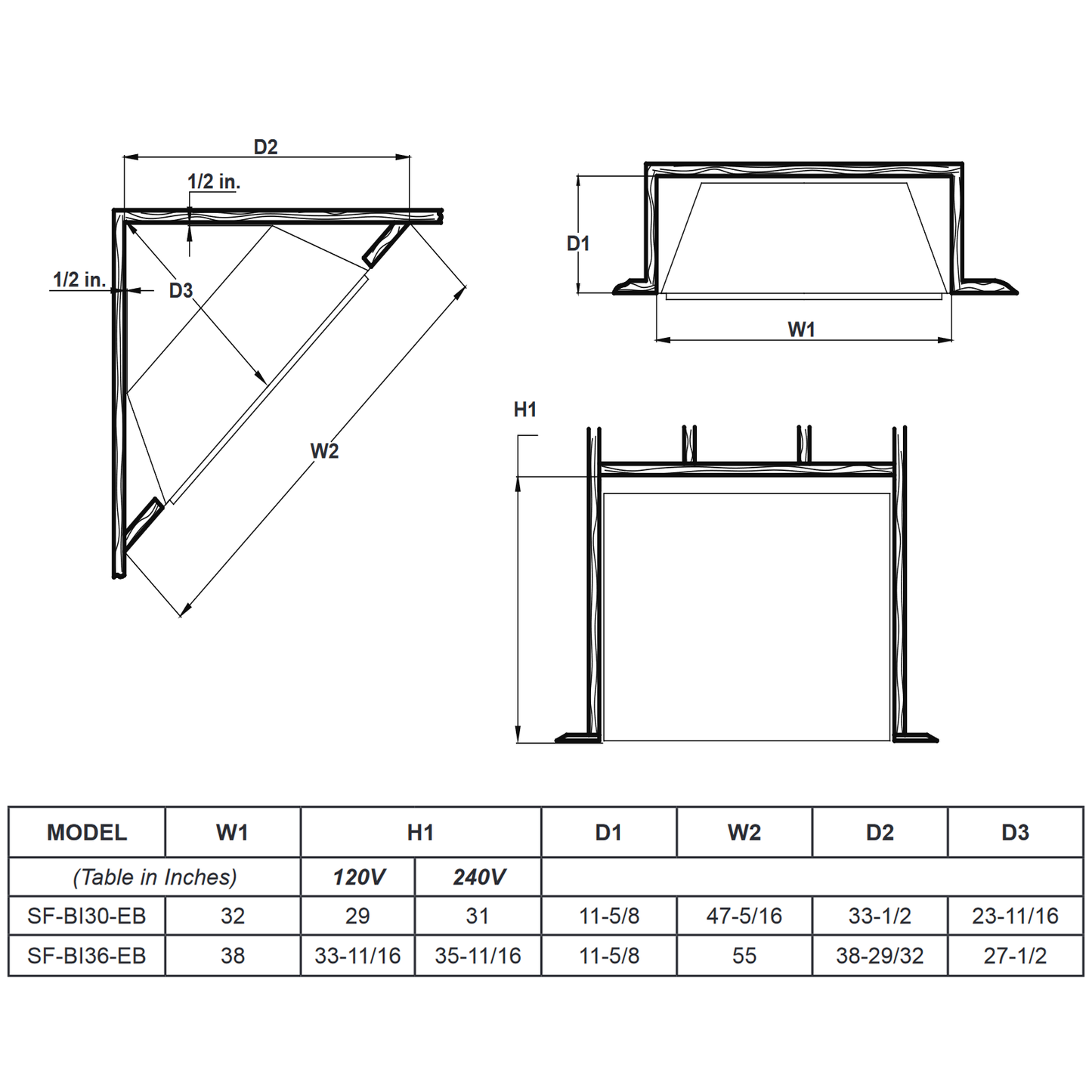

Technical Drawings

For more detail please see the Installation Manual

SF-BI30 Technical Drawing 1
SF-BI30 Technical Drawing 2

FAQ's

1. Am I required to buy anything else with the fireplace?

No, the built in series is assembled and can be installed without any additional components. It will need to be hard wired into the electrical system (wire and fittings are NOT included).

2. How will my fireplace be delivered?

The BI30 is shipped in a box via standard ground service (UPS/FedEx). The fireplace weighs under 75 lbs, we recommend two people to lift and move the fireplace.

3. Does this fireplace need venting?

No, electric fireplaces do not need to be vented, the heater works by electrical resistance which does not create any flue gases like a wood or gas fireplace.

4. What are the electrical requirements?

The BI30 requires a 15 AMP 120 Volt circuit, it is highly recommended that it is a dedicated circuit as additional electrical draw may trip the breaker.

5. Can it be used without turning on the heater?

Yes, the fireplace can function without the heater, providing just the flames. The heater does not function without the flames being turned on. The heater has three settings, off, 750 Watt and 1500 Watt.

6. How much will it cost to operate?

That depends on your electricity rates. The current average cost is $0.12/KWH, run on high, the BI30 uses 1.5 Kw/H so the cost would be around $0.18 per hour.

Please give us a call or send us an email if you have any further questions.
