Montigo Illume 30 Inch Contemporary Gas Fireplace Insert - 30FIDNIL
Montigo Illume 30 Inch Contemporary Gas Fireplace Insert - 30FIDNIL
SKU:30FIDNIL-01
Free Shipping on $99+ - No Tax
Couldn't load pickup availability
YOUR LOCAL AUTHORITY HAVING JURISDICTION MAY ENFORCE BUILDING CODES UNIQUE TO YOUR LOCALE.
REMEMBER: CONFORMITY TO YOUR LOCAL BUILDING CODES IS ULTIMATELY YOUR RESPONSIBILITY. THUS, THE IMPORTANCE OF WORKING WITH PROFESSIONALS LICENSED BY YOUR STATE LICENSING BODY.
Need help? Schedule a call with one of our Experts.
Schedule Phone Consult
Request a quote for the best pricing available.
Request a Quote

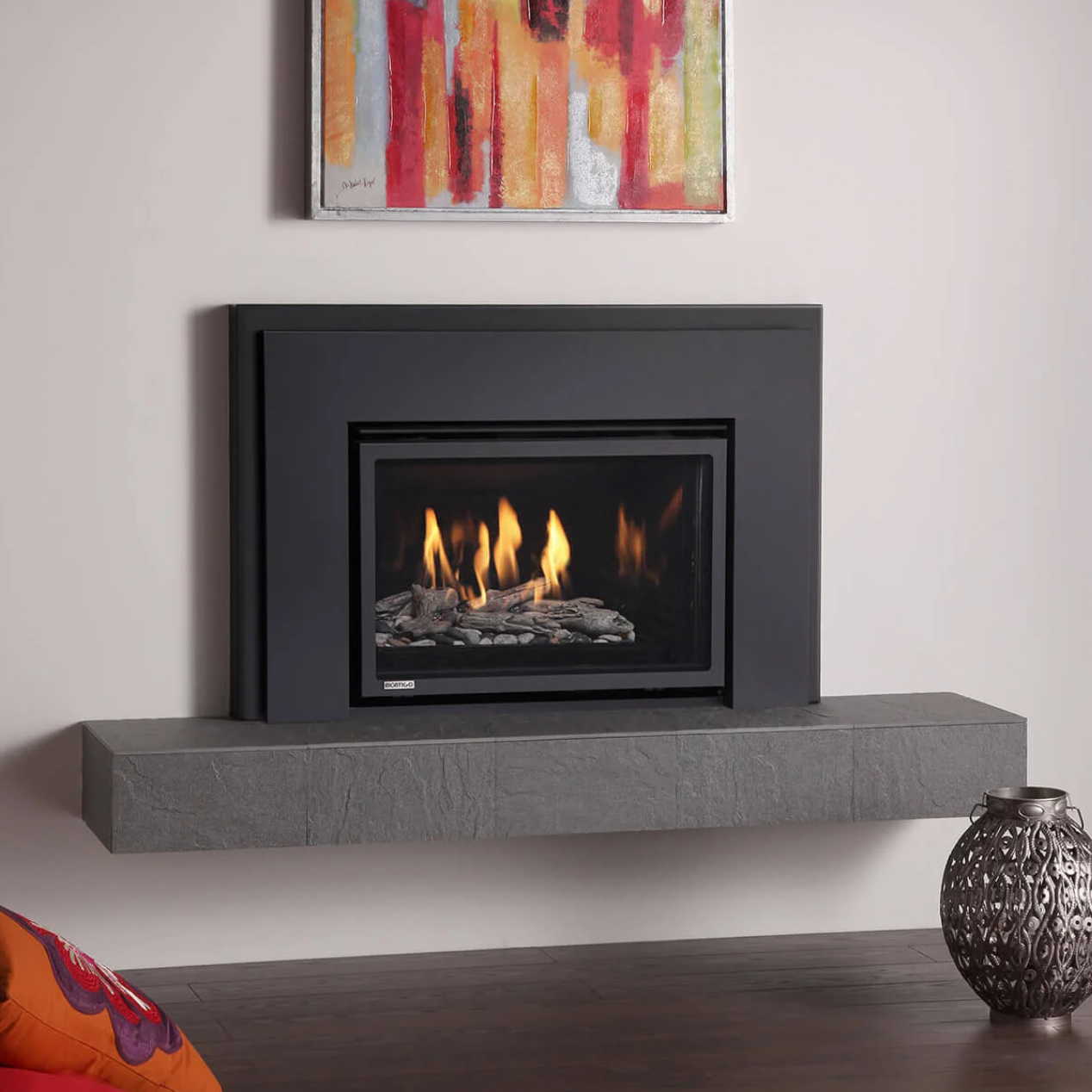

Transform your old wood-burning fireplace into a modern, eco-friendly heat source with the Illume gas fireplace insert. Offering high efficiency and easy installation, the Illume uses natural gas or propane, eliminating the mess of wood fires. It fits most standard fireplaces and enhances your home with its contemporary design. Upgrade to the Illume for a cleaner, stylish heating solution and enjoy a warm, inviting atmosphere all year round.
See all Montigo Illume accessories here
Features
- Up to 24,000 BTUs
- Includes Multi-function remote control and optional WiFi phone app control.
- Halogen uplighting
- Includes black porcelain liner and micro mesh screen
- Remote Hi-Lo flame
Dimensions
Dimensions
Dimensions |
||
Actual Dimensions |
||
| Height | Width | Depth |
|---|---|---|
| 20" | 29 1/2" | 13 1/2" |
Framing Dimensions |
||
| Height | Width | Depth |
| 20" | 30" | 14" |
Specifications
Specifications
Specifications |
||
Product Details |
||
| Fuel Type: | Gas | |
|---|---|---|
| Vent Type: | Direct-Vent | |
| Vent Size: | 3x4 | |
| Ignition Type: | Electronic | |
| Installation Type: | Insert | |
| Style: | Traditional | |
| Vent Inner Diameter: | 3 Inches | |
| Vent Outer Diameter: | 4 Inches | |
| Model: | Natural Gas (NG) | Propane (LP) |
| Max. (BTU/HR): | 24000 BTU's | 23000 BTU's |
| Min. (BTU/HR): | BTU's | BTU's |

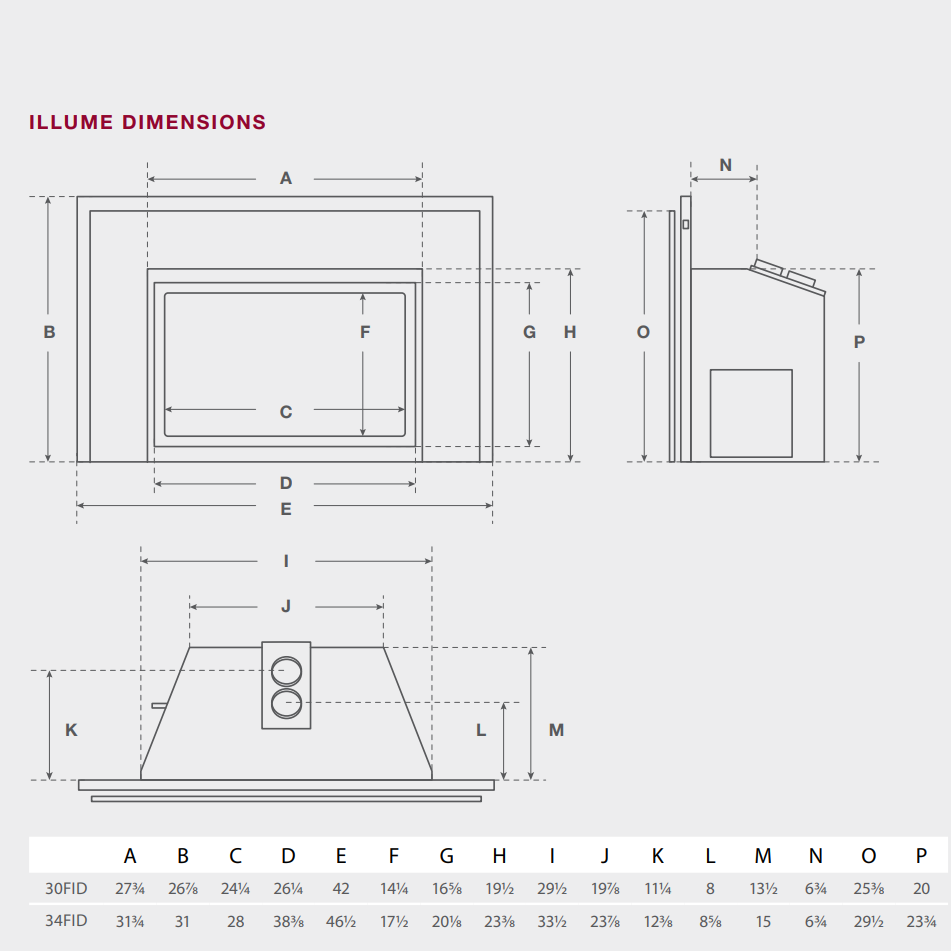

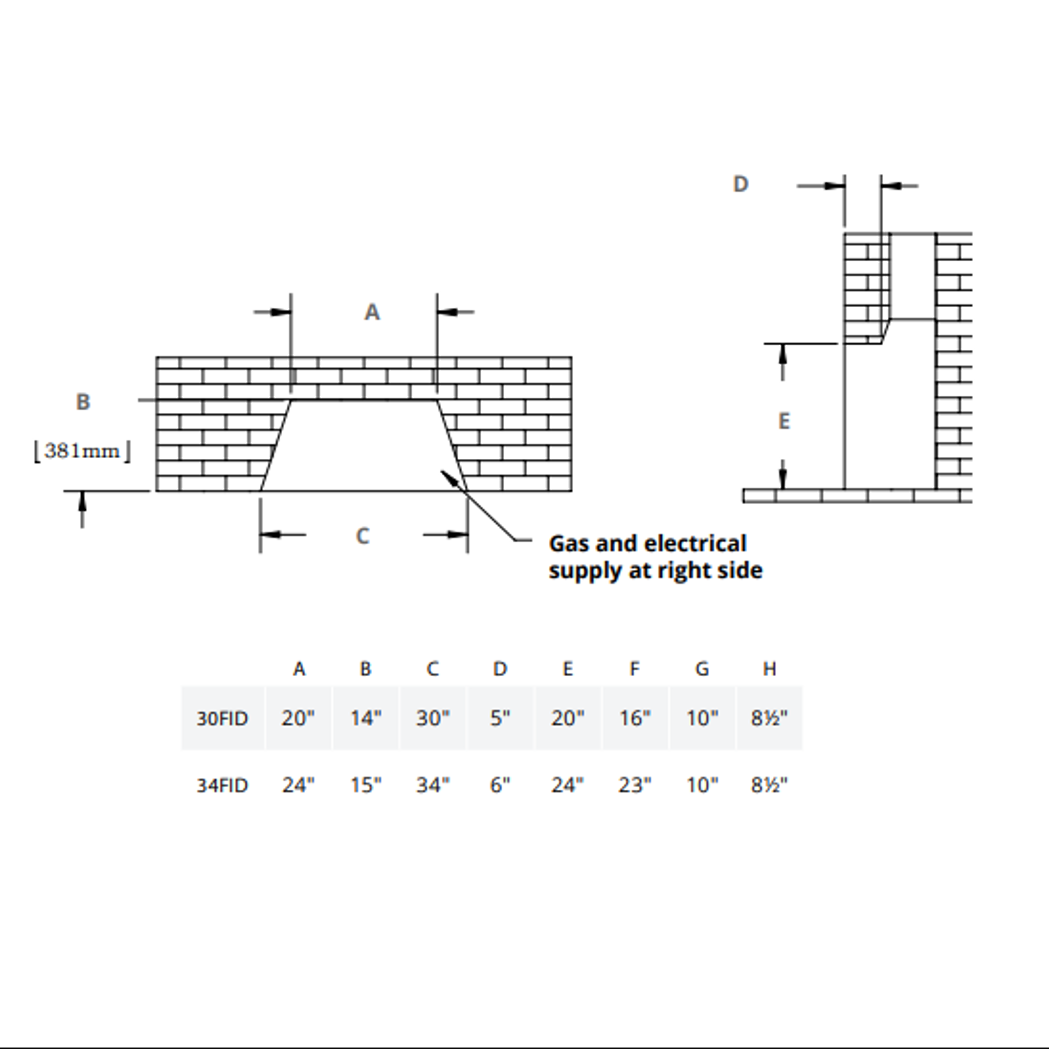

Technical Drawings
Technical Drawings
Installation Manual
Installation Manual
To Open the Installation Manual in another Window => Click Here
Warranty Policy
Warranty Policy
Exclusions from Warranty Coverage
- Provision of warranty services at the customer's location (on-site or in-home).
- Costs associated with removing parts prior to replacement.
- Installation of replacement parts or complete units.
- Labor expenses for diagnosing issues with potentially defective components.
- Initial installation costs and labor associated with installing warranty replacement parts.
To Open the Warranty Policy in another Window => Click Here
