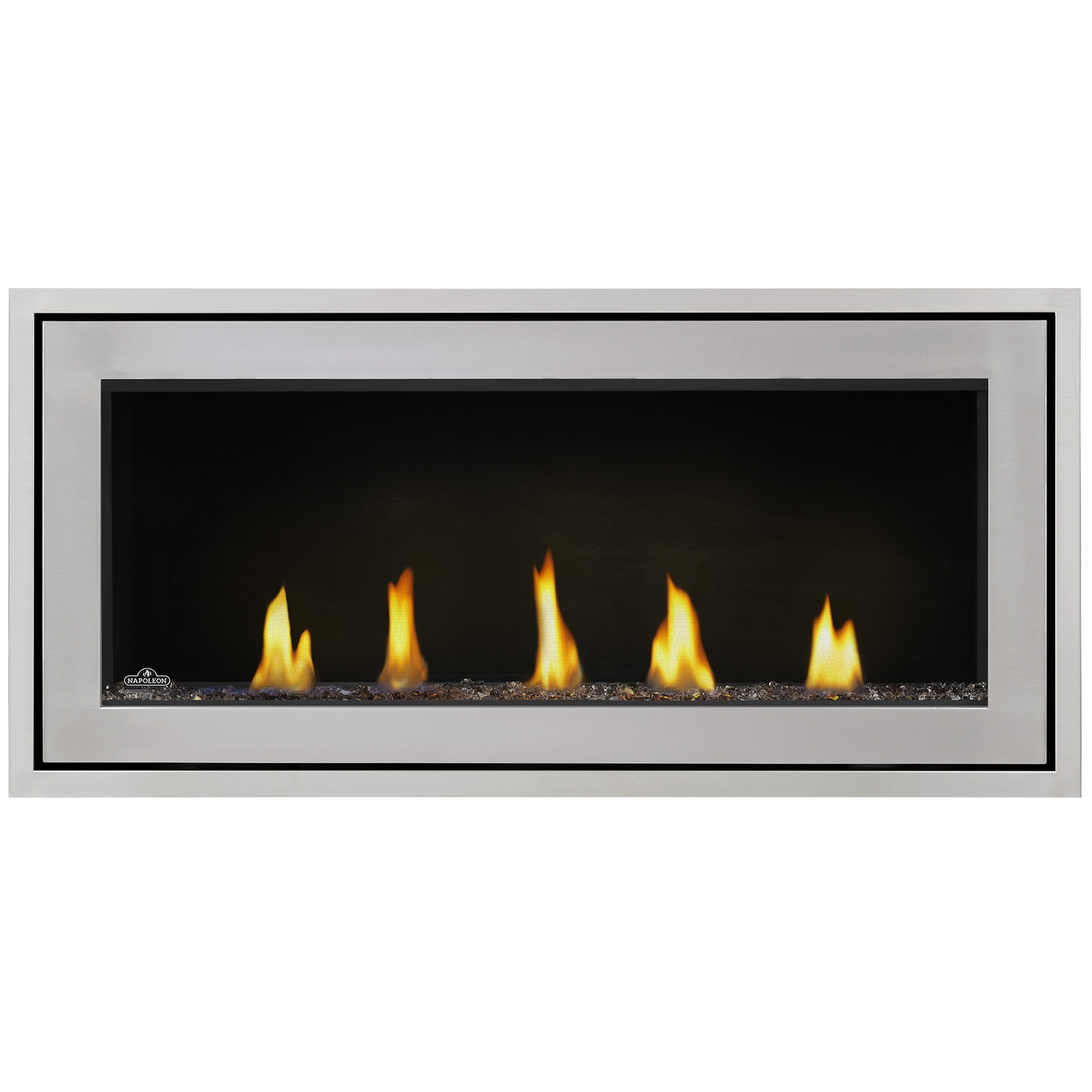

Napoleon Acies 38 Linear Direct-Vent Gas Fireplace - L38N
Napoleon Acies 38 Linear Direct-Vent Gas Fireplace - L38N
SKU:L38N
Free Shipping on $99+ - No Tax
Couldn't load pickup availability
YOUR LOCAL AUTHORITY HAVING JURISDICTION MAY ENFORCE BUILDING CODES UNIQUE TO YOUR LOCALE.
REMEMBER: CONFORMITY TO YOUR LOCAL BUILDING CODES IS ULTIMATELY YOUR RESPONSIBILITY. THUS, THE IMPORTANCE OF WORKING WITH PROFESSIONALS LICENSED BY YOUR STATE LICENSING BODY.
Need help? Schedule a call with one of our Experts.
Schedule Phone Consult
Request a quote for the best pricing available.
Request a Quote
Please see new alternative: Napoleon Vector 38 Linear Direct-Vent Gas Fireplace
With a sleek linear design and a multitude of designer options, Napoleon's Acies series of linear gas fireplace provide a complete luxurious experience, courtesy of their new Divinity flame pattern. The radiant glow is enjoyed through the topaz glass bead ember bed with the option of adding Beach Fire, Shore Fire, Mineral Rock media enhancement kits and more, including Premium Birch Logs.
Features
- See all available accessories here
- Black Standard Safety Barrier included
- SIT Proflame II system (remote not included)
- Available in Natural Gas and Propane
- Up to 24,000 BTU's
- Easy access air control for fast and precise air shutter adjustments
- Manual Hi/Lo flame adjustment
- Fuel saving electronic ignition with battery back-up
- Divinity flame pattern provides heightened peaks and valleys
- New Premium Birch Log Media Kit available
- Optional Fronts and 1" Finishing Trims available in black and stainless steel
- Optional MIRRO-FLAME Porcelain Reflective Radiant Panels available
- Optional media includes: Nickel Stix, Mineral Rock Kit, Shore and Beach Fire Media Kits, Glass Ember Media and Glass Beads in various colors!
- Optional eFIRE Remote App - Total control of your fireplace from the convenience of your mobile device
Dimensions
Dimensions
Dimensions |
||
Actual Dimensions |
||
| Height | Width | Depth |
|---|---|---|
| 413/16" | 575/16" | 1711/16" |
Framing Dimensions |
||
| Height | Width | Depth |
| 3915/16" | 5313/16" | 18" |
Specifications
Specifications
Specifications |
||
Product Details |
||
| Fuel Type: | Gas | |
|---|---|---|
| Vent Type: | Direct-Vent | |
| Vent Size: | 5x8 | |
| Ignition Type: | Electronic | |
| Installation Type: | Zero-Clearance | |
| Style: | Linear | |
| Vent Inner Diameter: | 5 Inches | |
| Vent Outer Diameter: | 8 Inches | |
| Weight: | 352 lbs. | |
| Model: | Natural Gas (NG) | Propane (LP) |
| Max. (BTU/HR): | 24,000 BTU's | 24,000 BTU's |
| Min. (BTU/HR): | 18,000 BTU's | 21,000 BTU's |
Technical Drawings
Technical Drawings
Installation Manual
Installation Manual
To Open the Installation Manual in another Window => Click Here
Warranty Policy
Warranty Policy
Exclusions from Warranty Coverage
- Provision of warranty services at the customer's location (on-site or in-home).
- Costs associated with removing parts prior to replacement.
- Installation of replacement parts or complete units.
- Labor expenses for diagnosing issues with potentially defective components.
- Initial installation costs and labor associated with installing warranty replacement parts.
To Open the Warranty Policy in another Window => Click Here
