The Napoleon Ascent 40 Electric Fireplace imitates the look of a traditional masonry fireplace but with all the convenience of simply plugging it in, sitting back and enjoying the heat and glowing log set! Napoleon's flame technology randomly adjusts the flame effect, color, height & speed creating the illusion of a true wood burning fire with a modulating ember bed for the realistic glow of burning wood. The ULTRA BRIGHT LED lights and convenient remote control enhance the allure of the Ascent Electric fireplaces. Perfect for any room in a house, condo, apartment or office.

Napoleon Built In Fireplaces Brochure

Features

  • Fading logs and ember bed appear as a real "dying fire" when unit is turned off
  • Non-reflective backing allows for optimal flame viewing and minimizes distracting room reflections
  • ULTRA BRIGHT high power/high intensity LED lights can be seen in both a day or night setting to accent the glowing logs and ember bed
  • NIGHT LIGHTS feature four color settings (blue, orange, purple, and clear) and can be used as one static color or rolling through the spectrum
  • WHISPER QUIET fan and heater with modulating control keeps your comfort level exactly where you want it
  • The modulating control features a timer and can be set to Fahrenheit (°F) or Celsius (°C)

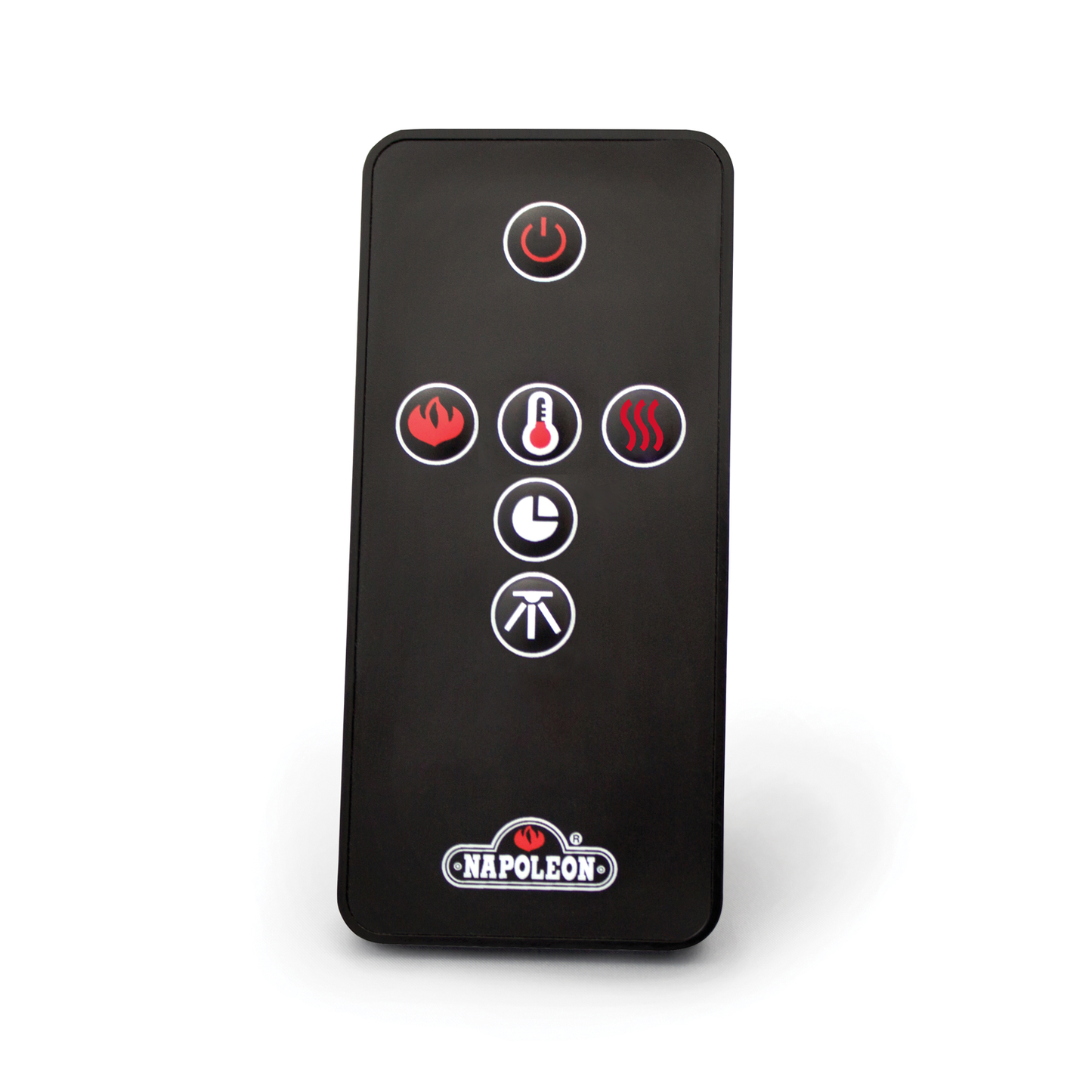

  • Convenient remote controls the flame and ember bed intensity, blower and heat output, NIGHT LIGHT feature and timer
  • Easy access manual on/off switch
  • Easy to clean the glass with a hinged door system
  • Can be used in a mantel application or as a single built-in unit
  • Self trimming flange will complete the installation with no additional work or cost
  • Realistic brick panels, glowing logs and ember bed
  • Can be plugged in 120V or hardwired 120V/240V, producing 4,500 BTU's and 9,000 BTU's respectively and warms up to 800 sq. ft.
  • Integrated self diagnostic LED light indicates when any issues arise

Napoleon Ascent 40 Built-In Electric Fireplace | NEFB40H | Technical Details

Specifications

Product Details

Fuel Type: Electric
Vent Type: Vent Free
Installation Type: Built In
Style: Traditional
Weight: 101 lbs.
BTU's @ 120V: 5,000 BTU's
BTU's @ 240V: 9,000 BTU's
Amps: 15 Amps
Watts: Max 2650W
High Temp Setting: 95°F
Low Temp Setting: 41°F
No Heat Setting: Yes
Napoleon Ascent 40 Built-In Electric Fireplace | NEFB40H | Dimensions

Dimensions

Actual Dimensions

Height Width Depth
32" 403/8" 14"

Framing Dimensions

Height Width Depth
315/8" 391/2" 141/2"

Technical Drawings

For more detail please see the Installation Manual

NEFB40 Technical Drawing 1
NEFB40 Technical Drawing 2

FAQ's

How will this fireplace be sent to my house?

The Ascent fireplace will be shipped via freight truck. The fireplace will be securely packaged in a wooden crate and inspected before it leaves our facilities. For this type of delivery it is necessary for you or someone you choose to be available at the time and place of the delivery. Read more about how freight shipping works on our FAQ page.

Can this fireplace be recessed into the wall?

Yes, the Ascent 40 is built into the wall.

What are the electrical requirements?

The Ascent 40 is equipped with a standard plug for a standard outlet or it can be hard wired. It requires a 15 AMP, 120 Volt circuit, and it is recommended that the circuit be dedicated as additional electrical draw from other appliances may trip the breaker.

How much does it cost to use the heater?

That depends on your electricity rates. The current average is $0.12/KWH, the Ascent 40 uses 1.5 Kw/H on high, so it will cost around $0.18/Hour to operate.

Please let us know if you have any further questions with an email or a phone call, we're here to help!

Questions & Answers

Ask a Question
  • Can this fireplace be used outdoors

    No, the Ascent Electric 40 is not approved for outdoor use.  Thanks for your question!
