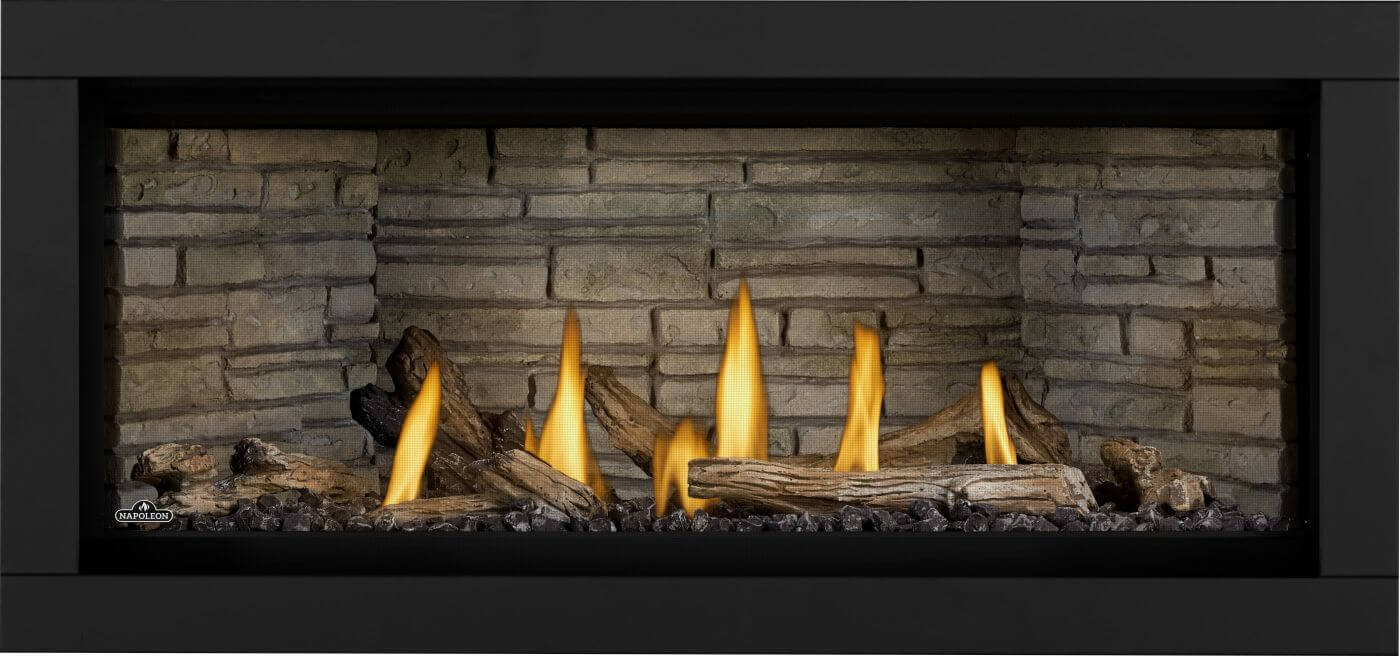

Napoleon Ascent Linear Premium 46 Direct Vent Gas Fireplace - BLX46NTE
Napoleon Ascent Linear Premium 46 Direct Vent Gas Fireplace - BLX46NTE
SKU:BLX46NTE
Free Shipping on $99+ - No Tax
Couldn't load pickup availability
YOUR LOCAL AUTHORITY HAVING JURISDICTION MAY ENFORCE BUILDING CODES UNIQUE TO YOUR LOCALE.
REMEMBER: CONFORMITY TO YOUR LOCAL BUILDING CODES IS ULTIMATELY YOUR RESPONSIBILITY. THUS, THE IMPORTANCE OF WORKING WITH PROFESSIONALS LICENSED BY YOUR STATE LICENSING BODY.
Make the Napoleon Ascent Linear Premium Series the ideal finishing touch for your home. Add luxury to any room with your choice of hand-painted driftwood, birch, oak logs, or scintillating glass crystals. Further enhance and customize this linear fireplace with gorgeous additional options like beach fire, shore fire, and beautiful mineral rocks.
Features
- Up to 24,000 BTU's
- Premium Safety Barrier Included
- Premium Log Set (3 Options), Required to Complete Unit
- Optional MIRRO-FLAME™ Porcelain Reflective Panels or Brick Panel
- Optional heat management available to reduce clearances to combustibles
- Four Optional Media Enhancement Kits
- Optional Glass Media
- Optional Black Surround
- Included eFIRE Controller and Remote Control
- NIGHT LIGHT™ System
- Included Heat Circulating Blower
- Designed for TVs
- Easy Access Air Control
- Battery Back-Up Control System
Dimensions
Dimensions
Actual Dimensions |
||
| Height | Width | Depth |
|---|---|---|
| 39" | 47" | 18.31" |
Framing Dimensions |
||
| Height | Width | Depth |
| 39.38" | 47.38" | 18.96" |
Specifications
Specifications
| Fuel Type: | Gas | |
|---|---|---|
| Vent Type: | Direct-Vent | |
| Ignition Type: | Electronic | |
| Installation Type: | Zero-Clearance | |
| Style: | Linear | |
| Vent Inner Diameter: | 4 Inches | |
| Vent Outer Diameter: | 7 Inches | |
| Weight: | 153 lbs. | |
| Model: | Natural Gas (NG) | Propane (LP) |
| Max. (BTU/HR): | 24,000 BTU's | 24,000 BTU's |
| Min. (BTU/HR): | 17,000 BTU's | 17,000 BTU's |
Technical Drawings
Technical Drawings
Installation Manual
Installation Manual
To Open the Installation Manual in another Window => Click Here
Warranty Policy
Warranty Policy
Exclusions from Warranty Coverage
- Provision of warranty services at the customer's location (on-site or in-home).
- Costs associated with removing parts prior to replacement.
- Installation of replacement parts or complete units.
- Labor expenses for diagnosing issues with potentially defective components.
- Initial installation costs and labor associated with installing warranty replacement parts.
To Open the Warranty Policy in another Window => Click Here
Prop 65 All Brands
Please see below for specific product warning labels. For additional information, please visit www.P65Warnings.ca.gov
