Napoleon Oakville GDIG3 Gas Fireplace Insert | GDIG3N |

Original price $3,249.00 - Original price $3,329.00
Original price
$3,249.00 - $3,329.00
Current price $3,249.00

New Item--Accessories and Options being added soon--Please call for more information!

Free Shipping Tax Free Authorized Napoleon Dealer

With all the features of the Oakville 3 plus Napoleon's exclusive NIGHT LIGHT and MIRRO-FLAME Porcelain Reflective Radiant Panels, the Oakville 3 Glass is the perfect solution for an economical heating source complemented with the modern elegance of a sparkling Topaz CRYSTALINE ember bed. A multitude of decorative designer accessories are also available to match any room in your home. Heating smarter and saving energy doesn't have to mean compromising great design.

Napoleon Oakville GDIG3 Brochure


  • See all available accessories here
  • For use within a masonry fireplace
  • Includes full function Proflame II Remote Control
  • Includes Reflective Radiant Interior Panels
  • Up to 24,000 BTU's
  • Sparkling Topaz Crystaline Ember Bed
  • Clean Face Design And Flush Finish Accessories
  • Full view design with a massive 340 sq. in. viewing area
  • SIT Proflame II Electronic Ignition
  • Exclusive NIGHT LIGHT included
  • Premium clean face safety barrier maximizes the viewing area
  • Directional baffles increase airflow for maximum blower efficiency
  • Clean contemporary faceplates and backerplates available
  • Superior heat circulating blower available
  • Optional Faceplates 2.5" And 5" Widths In 3-Sided Or 4-Sided Configurations
    Napoleon Oakville GDIG3 Gas Fireplace Insert | GDIG3N | Technical Details


    Product Details

    Fuel Type: Gas
    Vent Type: Direct Vent
    Vent Size: 3x3
    Ignition Type: Electronic
    Installation Type: Insert
    Style: Traditional
    Vent Inner Diameter: 3 Inches
    Vent Outer Diameter: 3 Inches
    Weight: 118 lbs.
    Model: Natural Gas (NG) Propane (LP)
    Max. (BTU/HR): 24,000 BTU's 24,000 BTU's
    Min. (BTU/HR): 14,808 BTU's 14,808 BTU's
    Napoleon Oakville GDIG3 Gas Fireplace Insert | GDIG3N | Dimensions


    Actual Dimensions

    Height Width Depth
    2015/16" 285/8" 185/16"

    Technical Drawings

    For more detail please see the Installation Manual

    GDIG3N Technical Drawing 1
    GDIG3N Technical Drawing 2



    How will the fireplace be delivered? Will the delivery driver bring it into my house?

    All fireplaces are delivered via freight (tractor trailer truck) to the specified street address you provide us, we do provide free lift gate service with all freight deliveries. The delivery driver is only responsible for unloading the items from the truck, not to move them anywhere. For more information on the delivery process visit our FAQ page.

    How is this fireplace vented?

    The Oakville 3G gas fireplace insert uses a 3" exhaust and a 3" intake. Since an insert is installed in a masonry fireplace, the 3" aluminum liners are typically dropped down the chimney. We recommend Napoleon's insert venting components, GDI-223 termination with a liner kit, GDI-2320KT, GDI-2325KT or GDI-2335KT, depending on the height of the chimney. Of course, if you need any assistance in determining which type of venting is best for your situation, give us a call (844)635-5499.

    What's the difference between an insert and a fireplace?

    In the hearth industry, we refer to an insert as a fireplace that is being installed within an existing masonry fireplace. These units are designed to get hot, therefore they wouldn't be safe installed in a wall opening. A direct vent fireplace, or zero clearance fireplace has additional insulation and heat protection to allow it to be installed close to combustible materials such as wood, they are generally larger in size that inserts.

    How do I know if my existing fireplace is big enough?

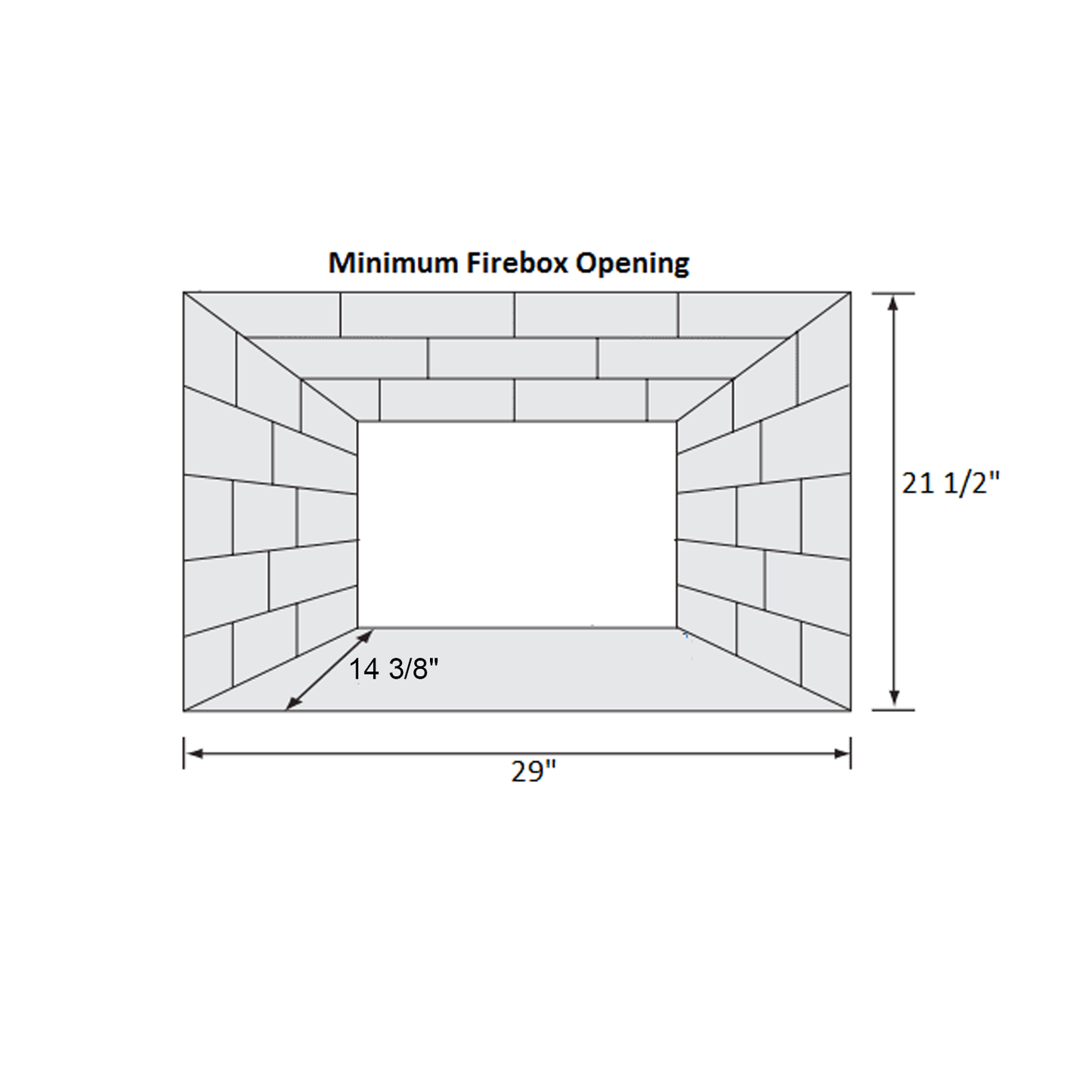

    The minimum firebox opening needed is shown in the images above (21 1/2"H x 29"W x 14-3/8"D (Add 4" depth for optional blower)). When choosing your surround size we generally aim for at least a half inch of overlap on the sides and top.

    Where are the accessories for this fireplace?

    You can find all of the available options on the accessories page.

    Have a different question? Give us a call, email or chat.

    Questions & Answers

    Ask a Question
    • Do you install or just sell your products, Can you recommend qualifying installers.

      We do not do any installations, or have a network of technicians to recommend. However, we typically suggest contacting a local HVAC or gas company who should be able to complete the install. Thanks for the question!
