A vent free gas fireplace that simply hangs on your wall. Ideal for modern and contemporary rooms, the Napoleon Plazmafire VF24 Vent Free Gas Fireplace features easy installation plus all of the conveniences of vent free. Virtually endless installation possibilities, it's almost as easy as hanging a picture on the wall. The Plazmafire VF24 comes standard with a Topaz CRYSTALINE ember bed and a MIRRO-FLAMEPorcelain Reflective Radiant Panel that adds to the modern look! NOTE: Vent Free Products are not approved in some States. Please check your local codes regarding vent free products.

Napoleon Plazmafire Brochure


  • See all available accessories here
  • Fixed rate of 9,000 BTUs
  • Easy start ignition
  • Exclusive Topaz CRYSTALINE ember bed
  • MIRRO-FLAME Porcelain Reflective Radiant Panel standard
  • Catalytic filtering tiles included to help clean the air
  • Oxygen Depletion Sensor (ODS) standard
  • Easily hangs on the wall with a built-in wall mounting plate (mounting screws not supplied)
  • Curved Glass Front
  • Optional Safety Screen
  • Natural gas or propane

Not recommended for use above 4,500 feet elevation

Napoleon Plazmafire 24 Vent Free Linear Gas Fireplace | WHVF24 | Technical Details


Product Details

Fuel Type: Gas
Vent Type: Vent Free
Ignition Type: Electronic
Installation Type: Zero Clearance
Style: Linear
Weight: 52 lbs.
Model: Natural Gas (NG) Propane (LP)
Max. (BTU/HR): 9,000 BTU's 9,000 BTU's
Min. (BTU/HR): BTU's BTU's
Napoleon Plazmafire 24 Vent Free Linear Gas Fireplace | WHVF24 | Dimensions


Actual Dimensions

Height Width Depth
22" 323/8" 67/8"

Framing Dimensions

Height Width Depth
22" 373/4" 36"

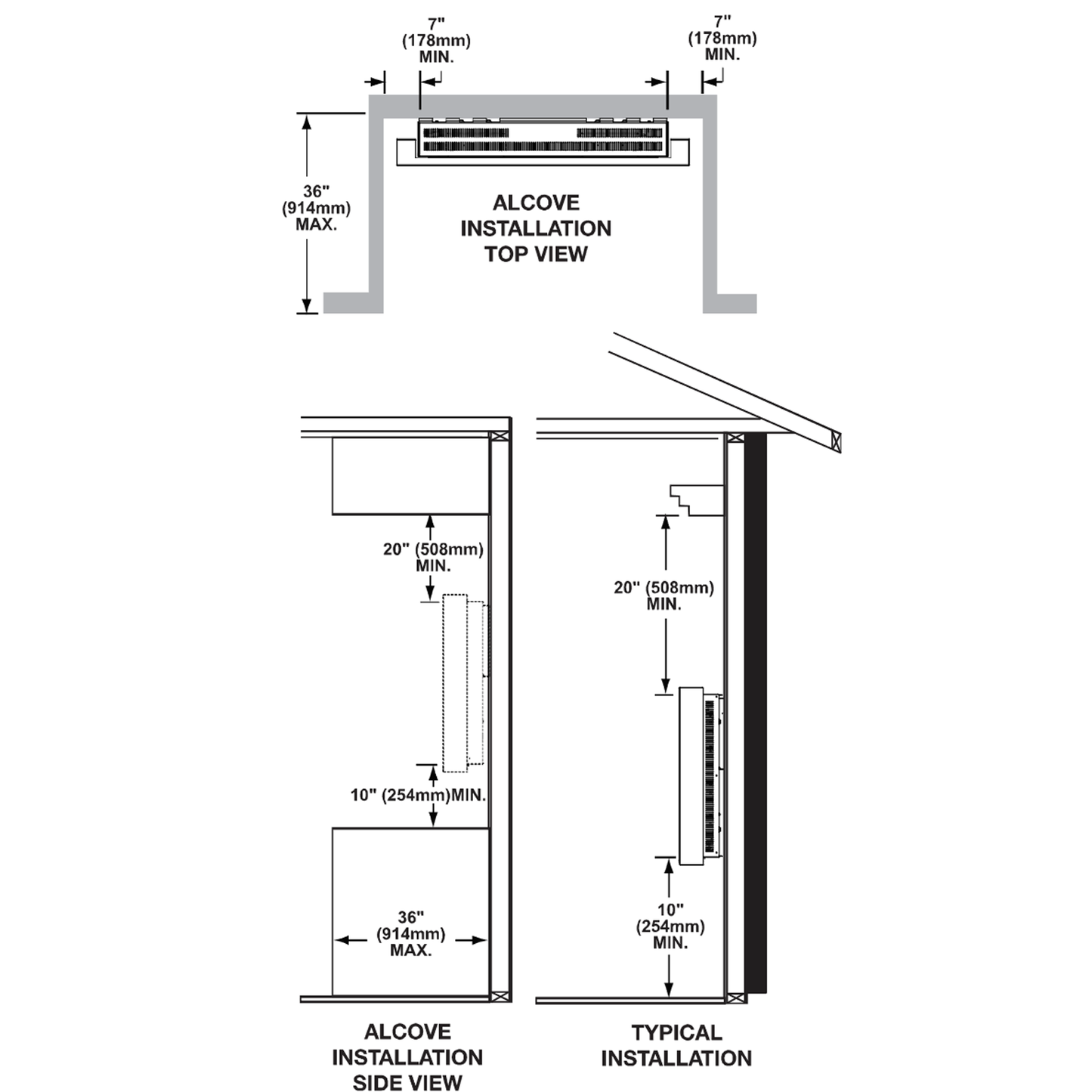

Technical Drawings

For more detail please see the Installation Manual

WHVF24 Technical Drawing 1
WHVF24 Technical Drawing 2


1. Do I need to purchase a surround?

No, the Plazmafire 24 includes the curved black surround, there are no other available surround options.

2. How will the fireplace be delivered? Will the delivery driver bring it into my house?

All fireplaces are delivered via freight (tractor trailer truck) to the specified street address you provide us, we do provide free lift gate service with all freight deliveries. The delivery driver is only responsible for unloading the items from the truck, not to move them anywhere. For more information on the delivery process visit our FAQ page.

3. How is the fireplace vented?

The Plazmafire VF is a vent free fireplace, check your local codes before ordering as vent free appliances are not approved for installation in some states.

4. Where are the accessories for this wood fireplace?

You can find all of the available options on the accessories page.

Questions & Answers

Ask a Question
  • Can this be used for an outdoor covered patio application, not directly exposed to weather.

    The Napoleon Plazmafire 24 vent free linear gas fireplace WHVF24 is not approved for outdoor use.

    Thank you for your question!

  • can I get a remote with this unit

    No, the Plazmafire 24 is a manual ignition system, it can not be connected to a remote.  Thanks for your question!

  • Does this unit have a blower or fan?

    No, there is no blower option for this model.  Thanks for your question!

  • Can this model be converted to use propane?

    The Plazmafire WHVF24 is produced from the manufacturer ready for either Natural gas or Propane.  So, no a natural gas version can not be converted to use with propane, a propane version needs to be purchased.  Please let us know if you would like any further clarification, Thanks for your question!

  • On the Plazmafire 24 ventless wall hanging fireplace, does the gas feed need to come through the wall or can it been outside of the wall and come up through the floor?

    It may be possible to come up from the floor with the gas line, but it's designed for the gas line to come in from the back.  There are two inlet locations as seen in the installation manual on page 11.  There may be an alternative route but it's not recommended by the manufacturer.  Please let us know if you would like further clarification, Thanks for your question!
