Napoleon See-Through Tall Linear Vector 74 with Luminous Logs Direct Vent Gas Fireplace - TLV74LN2

Napoleon See-Through Tall Linear Vector 74 with Luminous Logs Direct Vent Gas Fireplace - TLV74LN2

TLV74LN2

$19,479.00 USD
$19,479.00 USD
Sale Sold out

Financing available through Affirm at checkout.

Currently 5 Available. Order Now! | USUALLY SHIPS IN 1-3 DAYS
Free Shipping on Orders $500+ · Shipping Details
Returns: 30 days on new, unused items in original packaging. 20% restocking fee; you pay return shipping. Special-order and final-sale items are not returnable. See Return Policy

YOUR LOCAL AUTHORITY HAVING JURISDICTION MAY ENFORCE BUILDING CODES UNIQUE TO YOUR LOCALE.

REMEMBER: CONFORMITY TO YOUR LOCAL BUILDING CODES IS ULTIMATELY YOUR RESPONSIBILITY. THUS, THE IMPORTANCE OF WORKING WITH PROFESSIONALS LICENSED BY YOUR STATE LICENSING BODY.

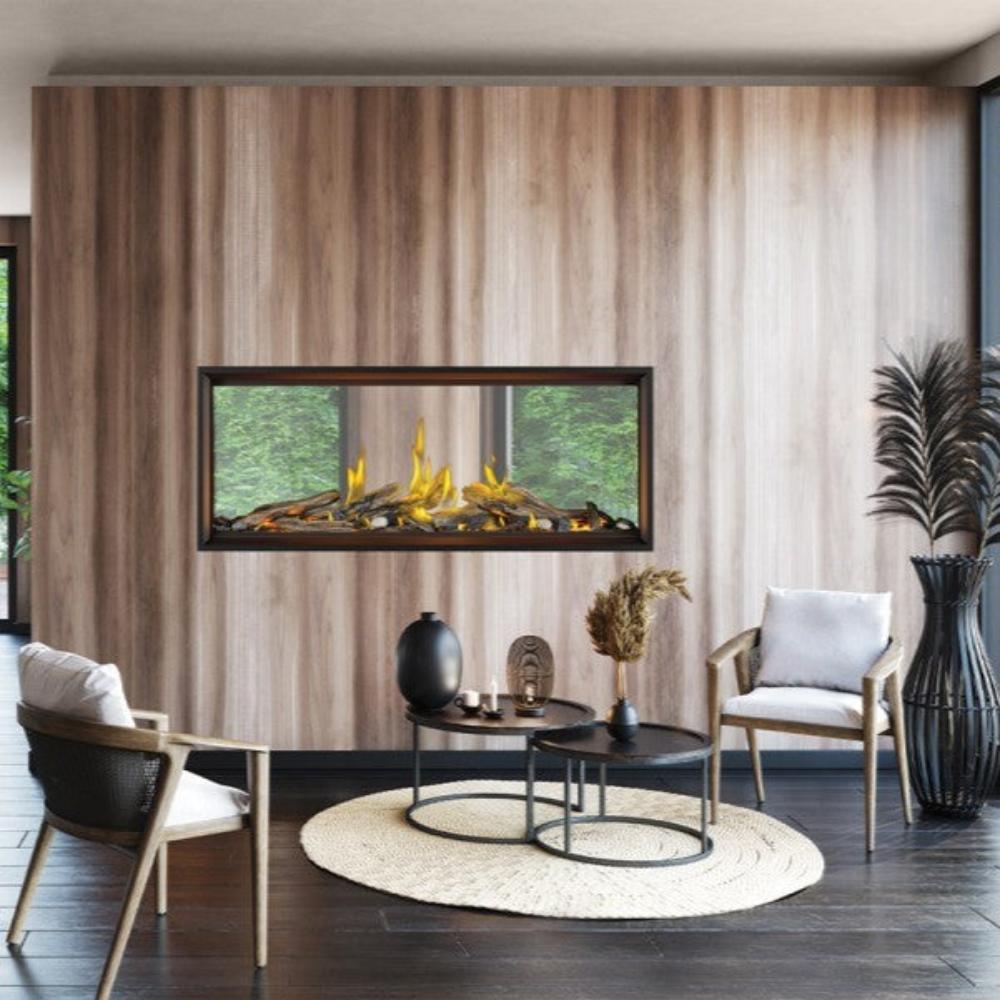

Enhance your home's ambiance with the Napoleon See-Through Tall Vector Linear gas fireplace. It combines modern design with advanced technology for efficient heating and a realistic fire effect. The See-Through design allows everyone to enjoy the warmth and glow of this fireplace from more than one room. This fireplace also features a sleek look, modulating ember bed, superior heat distribution, and optional heat management systems. Luminous Logs give this fireplace a lifelike wood-burning experience, ensuring comfort and beauty.

Tall Vector Luminous Brochure

Features

  • Up to 48,000 BTUs
  • Heat Radiating Ceramic Glass
  • Black Premium Safety Barrier
  • Battery Back-Up Control System
  • Stainless Steel Flex Connector
  • Easy Access Air Control
  • Top Accent Lighting
  • Simple Installations – No Power Vent (For Natural Gas Only) or Air Intake Required
  • ProFlame II and eFire Controller with Remote Control
  • Luminous Logs Burner and Square Tube Burner with Flame and Heat Adjustment
  • MIRRO-FLAME Porcelain Reflective Radiant Panels included

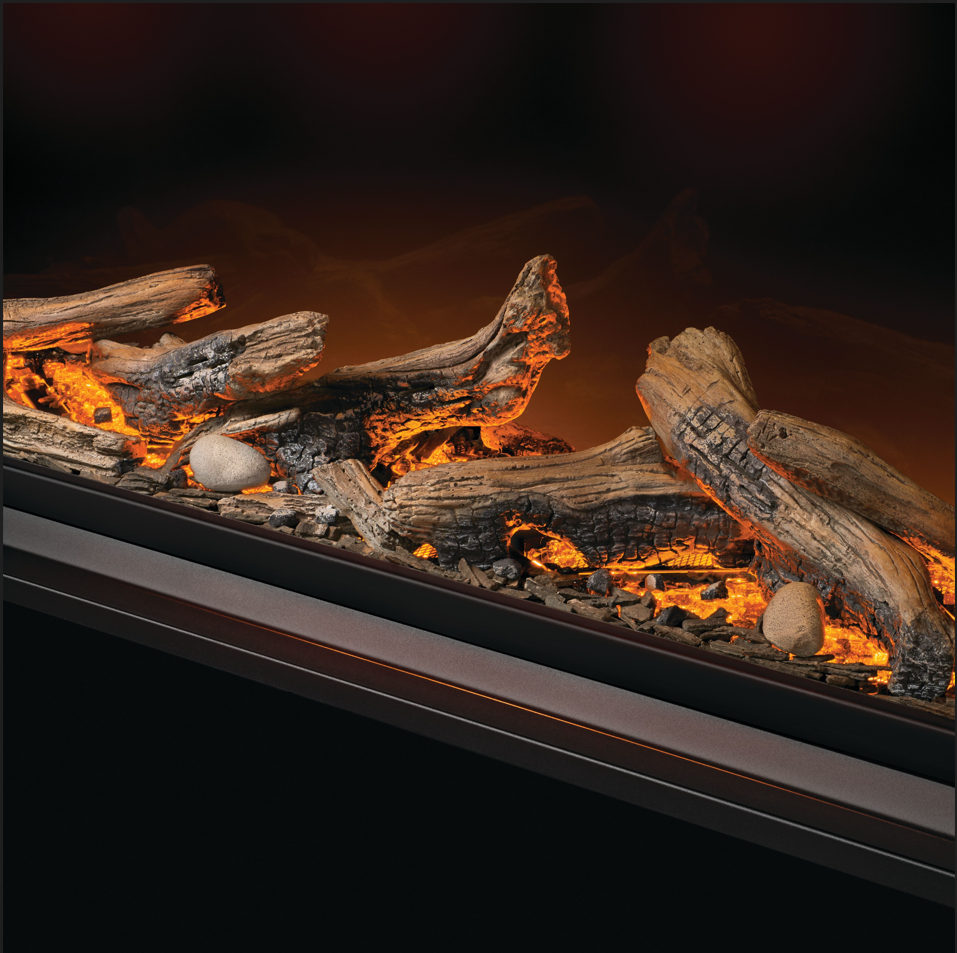

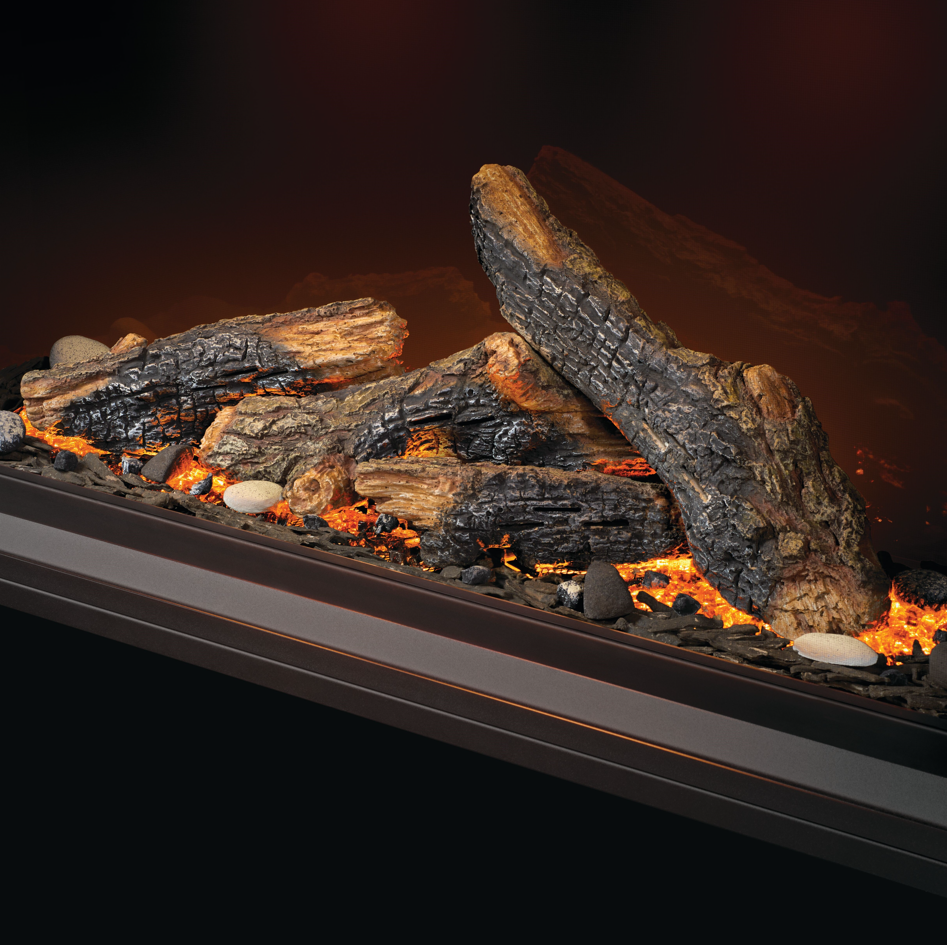

  • Luminous Logs with modulating electric ember bed for lifelike appearance

    • Dimensions

    Actual Dimensions
    Height Width Depth
    49 7/16" 89 5/16" 16 3/16"

    Framing Dimensions
    Height Width Depth
    91" 89 13/16" 16 3/16"

    Specifications

    Fuel Type: Gas
    Vent Type: Direct-Vent
    Vent Size: 5x8
    Ignition Type: Electronic
    Installation Type: Zero-Clearance
    Style: See-Through
    Vent Inner Diameter: 5 Inches
    Vent Outer Diameter: 8 Inches
    Model: Natural Gas (NG) Propane (LP)
    Max. (BTU/HR): 41500 BTU's 48000 BTU's
    Min. (BTU/HR): BTU's BTU's

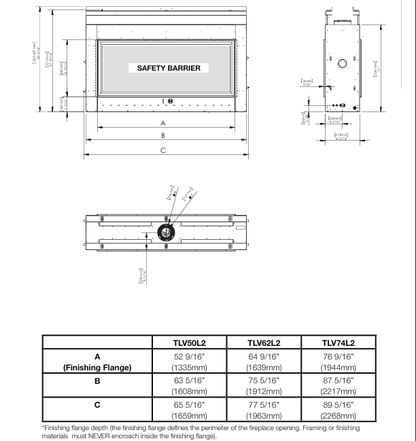

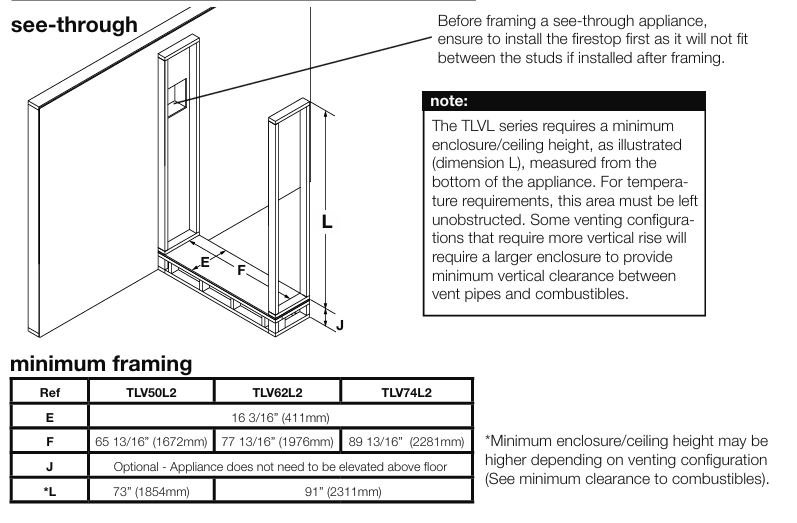

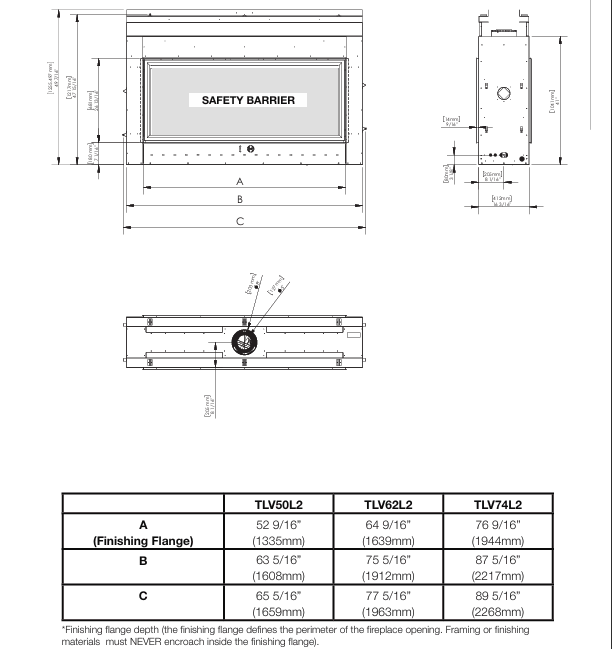

    Technical Drawings

    Installation Manual

    To Open the Installation Manual in another Window => Click Here

    Warranty Policy

    Exclusions from Warranty Coverage

    • Provision of warranty services at the customer's location (on-site or in-home).
    • Costs associated with removing parts prior to replacement.
    • Installation of replacement parts or complete units.
    • Labor expenses for diagnosing issues with potentially defective components.
    • Initial installation costs and labor associated with installing warranty replacement parts.

      • To Open the Warranty Policy in another Window => Click Here

    ⚠ WARNING: This product can expose you to chemicals including carbon monoxide, benzene and formaldehyde, which are known to the State of California to cause cancer and birth defects or other reproductive harm, and, for products with brass components, lead. Solid-fuel products can also expose you to soot. For more information go to www.P65Warnings.ca.gov.
