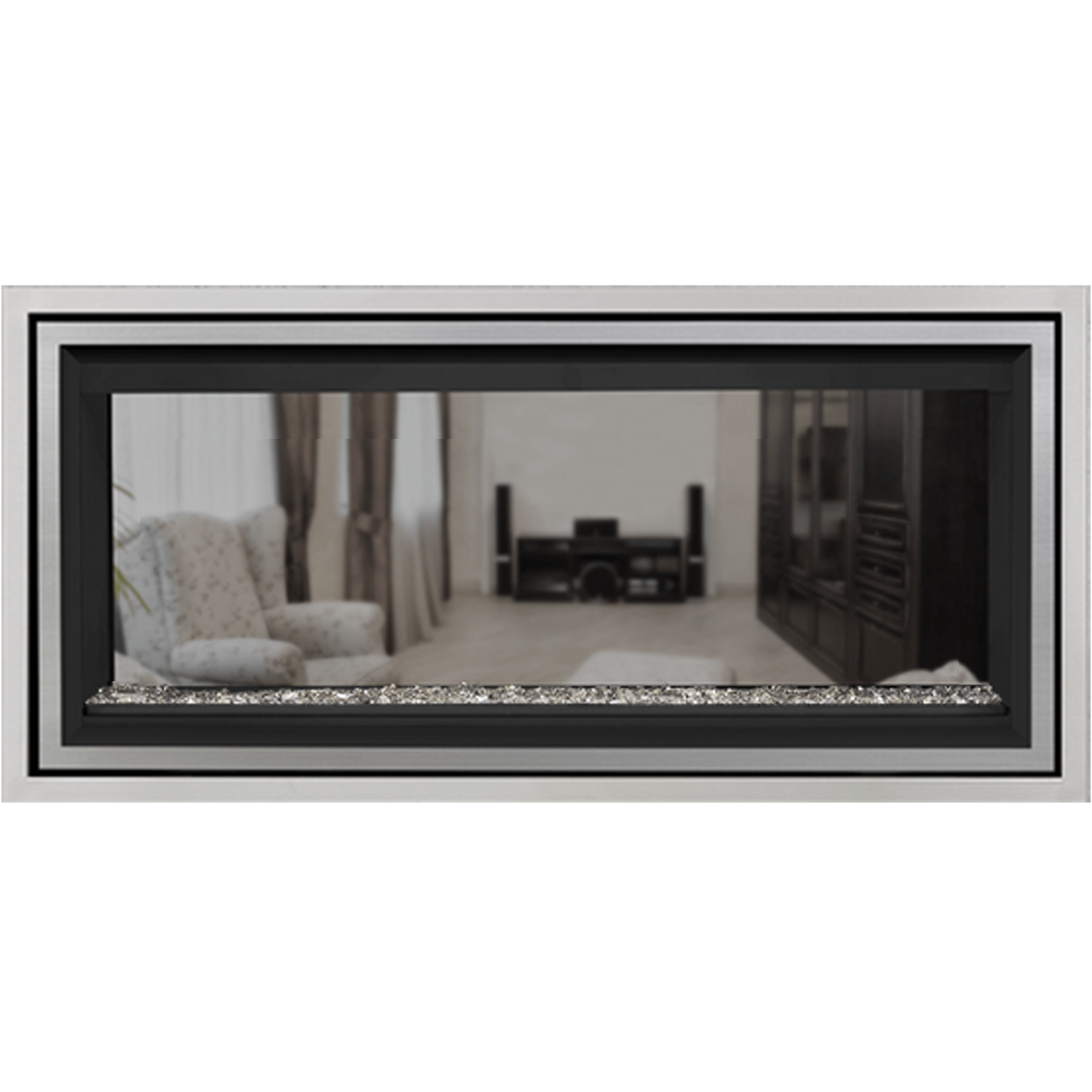

Napoleon Vector 38 See-Through Linear Direct-Vent Gas Fireplace | LV38N2-1 |

$4,499.00

Free Shipping Tax Free Authorized Napoleon Dealer
IN STOCK USUALLY SHIPS IN 2-3 DAYS

Napoleon's Vector series of linear gas fireplaces is the perfect fit for any room or anyone looking to make a statement in their home. Customize your fireplace with our selection of designer surrounds, choose a different surround for either side of the See-Thru Vector 38 to match or enhance your current decor. Napoleon's Vector 38 can also match any interior design; with dozens of media options available, the possibilities are endless.

Vector Linear Gas Fireplace Brochure

Features

  • See all available accessories here
  • Black Premium Clean Face Safety Barrier included
  • Up to 30,000 BTU's
  • Available in Natural Gas and Propane
  • New premium media options available, including Birch Logs and Wrought Iron Globes
  • Remote Control and updated eFIRE bluetooth app Included
  • eFIRE Remote App - Total control of your fireplace from the convenience of your mobile device
  • Standard NIGHT LIGHT system adds a gentle glow to the room
  • MIRRO-FLAME Porcelain Reflective Radiant Panels installed
  • Includes ember bed featuring multi-colored LED lights that accent from underneath
  • Divinity flame pattern provides heightened peaks and valleys
  • Easy access air control for fast and precise air shutter adjustments
  • Fuel saving electronic ignition with battery back-up
  • Optional media includes: Nickel Stix, Mineral Rock Kit, Shore and Beach Fire Media Kits, Glass Ember Media and Glass Beads in various colors!
Napoleon Vector 38 See-Through Linear Direct-Vent Gas Fireplace | LV38N2-1 | Technical Details

Specifications

Product Details

Fuel Type: Gas
Vent Type: Direct Vent
Vent Size: 5x8
Ignition Type: Electronic
Installation Type: Zero Clearance
Style: See-Through
Vent Inner Diameter: 5 Inches
Vent Outer Diameter: 8 Inches
Weight: 352 lbs.
Model: Natural Gas (NG) Propane (LP)
Max. (BTU/HR): 30,000 BTU's 28,000 BTU's
Min. (BTU/HR): 21,000 BTU's 24,000 BTU's
Napoleon Vector 38 See-Through Linear Direct-Vent Gas Fireplace | LV38N2-1 | Dimensions

Dimensions

Actual Dimensions

Height Width Depth
413/16" 575/16" 163/16"

Framing Dimensions

Height Width Depth
3915/16" 5313/16" 163/16"

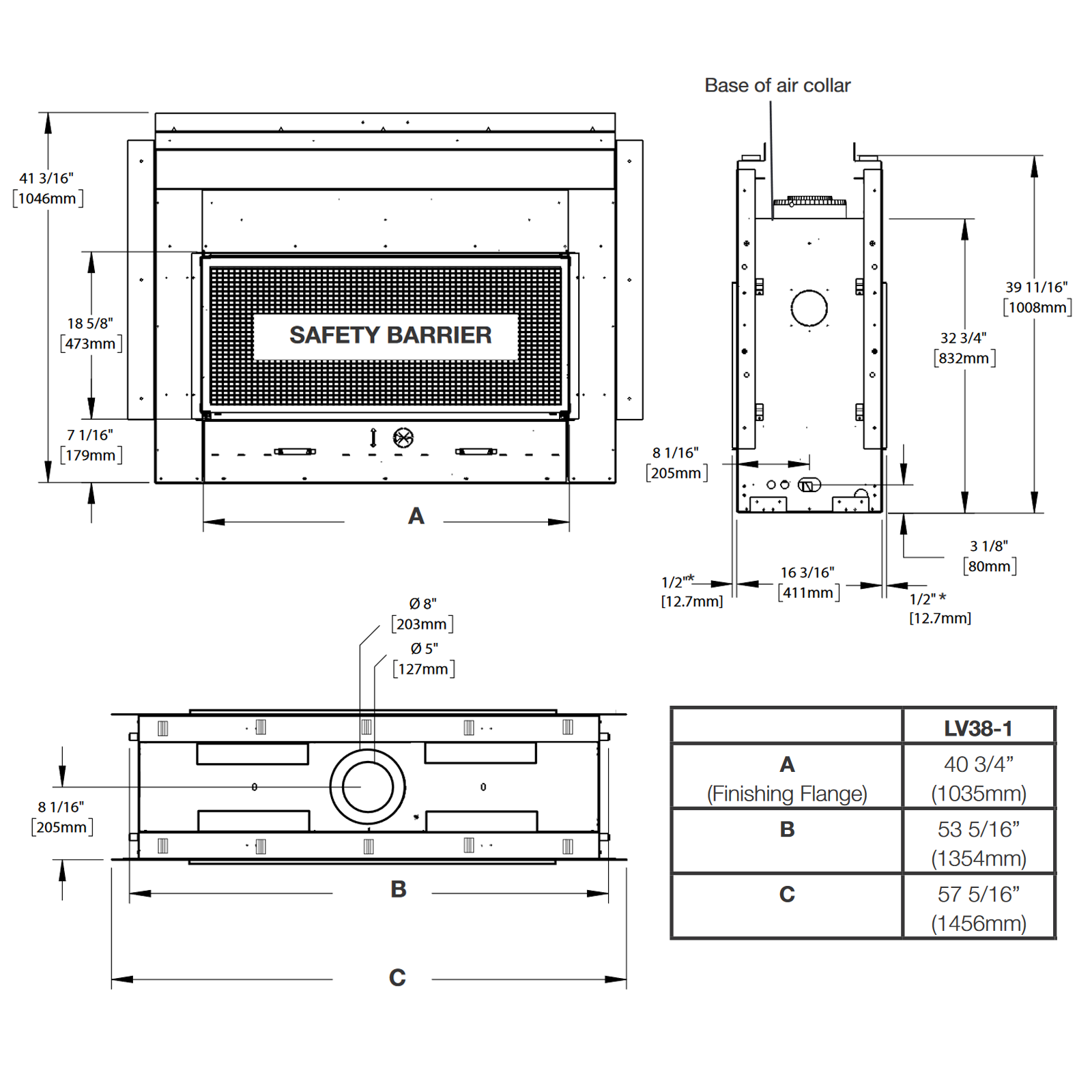

Technical Drawings

For more detail please see the Installation Manual

LV38 Technical Drawing 1
LV38 Technical Drawing 2

FAQ's

1. Am I required to purchase a surround with the fireplace?

No, the new Vector Series is designed as a clean face fireplace and includes the basic black safety barrier, you can choose an optional surround to fit your installation. These items are an additional cost due to the wide range of prices for the different options.

2. How will the fireplace be delivered? Will the delivery driver bring it into my house?

All fireplaces are delivered via freight (tractor trailer truck) to the specified street address you provide us, we do provide free lift gate service with all freight deliveries. The delivery driver is only responsible for unloading the items from the truck, not to move them anywhere. For more information on the delivery process visit our FAQ page.

3. The picture shows logs and stones, are those included?

The log and stone kits are optional accessories designed to enhance the look of your fireplace. You can find them and other media kits on the accessories page.

4. How is the fireplace vented?

The LV38 is typically vented using Napoleon's 5x8 venting components, you can find them here. We have assembled a complete vent kit for situations where the vent will have a short rise and turn to a horizontal termination (when the fireplace is installed on an exterior wall). If you need help designing the venting system let us know with an email or a phone call and we can assemble a custom solution for your situation.

5. Have another question? Feel free to chat, call, email or use the question and answer system below!
