The Allusion electric fireplace series embraces modern design by combining linear proportions with a multitude of flame and ember bed LED lighting themes. Additionally, intuitive operation is exemplified by the standard remote and touch controls on the fireplace front.

SimpliFire Allusion 40 Brochure

Features

  • See all available accessories here
  • 100% efficient, adjustable heat that costs just pennies an hour to operate
  • Four flame color themes
  • 14 ember bed color themes for complete customization
  • Intuitive, multifunction remote for control at your fingertips
  • Zone heat your space to remain comfortable, while reducing your monthly bills
  • 5,000 BTU Heater with thermostat function
  • Fully or partially recessed or hang on the wall
  • Operate the flames and ember bed with or without heat for year round enjoyment
SimpliFire Allusion 40 Inch Wall Mounted Electric Fireplace | SF-ALL40-BK | Technical Details

Specifications

Product Details
Fuel Type: Electric
Vent Type: Vent Free
Installation Type: Wall Mount or Partial Recess or Full Recess
Style: Linear
Weight: 60 lbs.
BTU's @ 120V: 5,000 BTU's
Amps: 12.5 Amps
Watts: Max 1500W
High Temp Setting: 84°F
Low Temp Setting: 60°F
No Heat Setting: Yes
SimpliFire Allusion 40 Inch Wall Mounted Electric Fireplace | SF-ALL40-BK | Dimensions

Dimensions

Actual Dimensions
Height Width Depth
201/4" 401/2" 515/16"

Framing Dimensions
Height Width Depth
181/8" 36" 37/8"

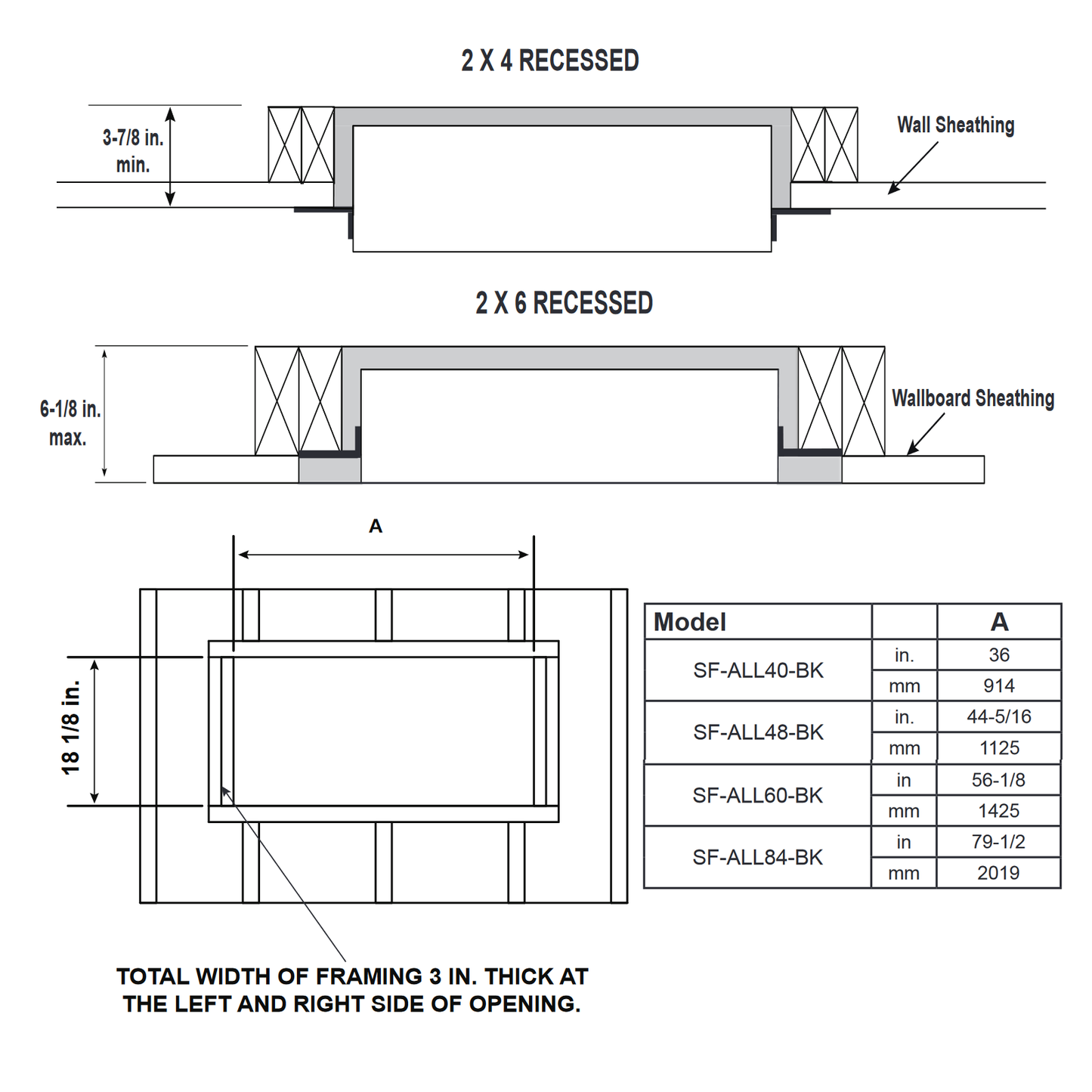

Technical Drawings

For more detail please see the Installation Manual

SF-ALL40 Technical Drawing 1
SF-ALL40 Technical Drawing 2

FAQ's

How will this fireplace be sent to my house?


The Allusion 40 fireplace will be shipped via freight truck. The fireplace will be securely packaged in a wooden crate and inspected before it leaves our facilities. For this type of delivery it is necessary for you or someone you choose to be available at the time and place of the delivery. Read more about how freight shipping works on our FAQ page.

Can this fireplace be recessed into the wall?


Yes, the Allusion 40 can be either wall mounted, partially recessed or fully recessed into the wall.

What are the electrical requirements?


The Allusion comes standard with a plug or can be hard wired at the time of installation. A 15 AMP 120 Volt circuit is required. A dedicated circuit is recommended but not essential in all situations.

Where are the accessories for this fireplace?


You can find all of the available options on the accessories page.



Have another question?


Feel free to call, email, chat or use the question and answer system below. We're here to help! (844)635-5499 support@northcountryfire.com

Questions & Answers

Ask a Question

  • Is this unit safe for a screen porch. Some weather, rain from wind may get inside the screen room 16x12 room

    No, this would not be an appopriate fireplace for a screen porch.  You would want something that's outdoor rated.  Thanks for your question.

  • What is the weight of the 40” Allusion?

    The Allusion 40 weighs roughly 50 lbs.  Thanks for your question!
