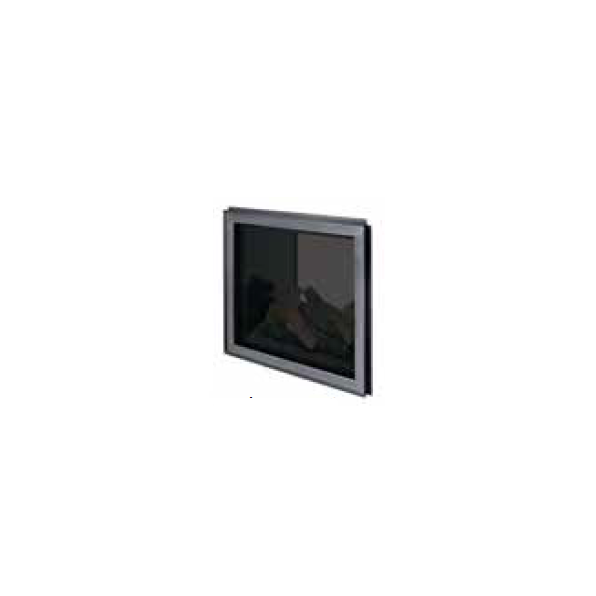

Superior 40 Inch Direct Vent Traditional Indoor/Outdoor Gas Fireplace - DRT63ST
Superior 40 Inch Direct Vent Traditional Indoor/Outdoor Gas Fireplace - DRT63ST
SKU:DRT63STTEN-B
Financing available through Affirm at checkout.
Currently 5 Available. Order Now! | USUALLY SHIPS IN 1-3 DAYSFree Shipping on Orders $500+ · Shipping Details
Returns: 30 days on new, unused items in original packaging. 20% restocking fee; you pay return shipping. Special-order and final-sale items are not returnable. See Return Policy
Couldn't load pickup availability
YOUR LOCAL AUTHORITY HAVING JURISDICTION MAY ENFORCE BUILDING CODES UNIQUE TO YOUR LOCALE.
REMEMBER: CONFORMITY TO YOUR LOCAL BUILDING CODES IS ULTIMATELY YOUR RESPONSIBILITY. THUS, THE IMPORTANCE OF WORKING WITH PROFESSIONALS LICENSED BY YOUR STATE LICENSING BODY.
With its expansive two-sided opening and stunningly realistic fire presentation, the DRT63ST See-Through provides a harmonious flow from one space to another, inside or outside the home. The DRT63ST See-Through is available in a 40" size, and comes standard with high-definition logs, ceramic ember bed burner, log grate, SIT Proflame II control system with seamless battery back-up, CPI/IPI switchable, 6-flame settings with full function thermostatic remote control.
Features
- See all available accessories here
- Up to 60,000 BTUs
- Configurable as indoor/indoor or indoor/outdoor applications
- Gas controls are conveniently hidden to the side of the fireplace opening for easy installation and finishing
- Electronic ignition with battery backup to provide continued operation in the event of a power outage
- Exclusive burner design to generate amazing flame and glowing logs
- Six flame settings with up to a 33% turn-down for precise heat control
- Up to 70% industry leading AFUE
- Smooth-face design features ceramic glass for optimum heat transfer and a protective screen
- Premium, high definition aged oak ceramic fiber log set with beautiful glowing ceramic ember bed
- Heavy duty log grate
- Interior liner selections consist of two-piece black reflective porcelain or ceramic fiber
- Full function remote control (T-stat, flame, IPI/CPI)
- Available in dedicated power-vent models (Natural Gas only)
- Optional outdoor window kit, tested and listed to ASTM commercial window standard for air infiltration, water resistance, structural integrity and thermal resistance (U-Value/CRF)
- 20 year limited warranty
Dimensions
Dimensions
Actual Dimensions |
||
| Height | Width | Depth |
|---|---|---|
| 465/8" | 501/2" | 271/2" |
Framing Dimensions |
||
| Height | Width | Depth |
| 473/8" | 521/8" | 263/8" |
Specifications
Specifications
| Fuel Type: | Gas | |
|---|---|---|
| Vent Type: | Direct-Vent | |
| Vent Size: | 8x11 | |
| Ignition Type: | Electronic | |
| Installation Type: | Zero-Clearance | |
| Style: | Indoor/Outdoor Kit Available | |
| Vent Inner Diameter: | 8 Inches | |
| Vent Outer Diameter: | 11 Inches | |
| Weight: | 400 lbs. | |
| Model: | Natural Gas (NG) | Propane (LP) |
| Max. (BTU/HR): | 60,000 BTU's | 56,000 BTU's |
| Min. (BTU/HR): | 40,000 BTU's | 43,500 BTU's |
Technical Drawings
Technical Drawings
Installation Manual
Installation Manual
To Open the Installation Manual in another Window => Click Here
Warranty Policy
Warranty Policy
Exclusions from Warranty Coverage
- Provision of warranty services at the customer's location (on-site or in-home).
- Costs associated with removing parts prior to replacement.
- Installation of replacement parts or complete units.
- Labor expenses for diagnosing issues with potentially defective components.
- Initial installation costs and labor associated with installing warranty replacement parts.
To Open the Warranty Policy in another Window => Click Here
