The DRL3042 fireplace brings together the latest in technology and design to provide the ultimate in versatility. Its glossy, smooth porcelain interior showcases a mesmerizing band of flames, produced with advanced Infini-Flame technology for energy-efficient warmth. An array of contemporary media and surround options provides a sleek and stylish appearance that's customizable to suit your taste and complement your home decor. The result is a modern fireplace that offers not only efficient warmth but stunning beauty as well.
Features
- See all available accessories here
- 22,000 BTUs Nat / 20,000 BTU's LP (no flame adjustment available)
- Electronic ignition with battery backup to operate in the event of a power outage (unit installed IPI/CPI switch standard)
- Exclusive Infini-Flame technology provides a continuous band of gentle flames across the expansive viewing area
- 71.9% industry leading AFUE
- Clean-face design features ceramic glass for optimum heat transfer and a protective screen
- Optional blower to fine tune your heating needs
- Interior finish selections consist of three-piece reflective porcelain panels and reflective black crushed glass media
- Includes clean-faced trim kit or purchase an optional four-piece surround kit in black painted or brushed stainless steel finish
- On/Off remote control
- 20 year limited warranty
Dimensions
Dimensions
Dimensions |
||
Actual Dimensions |
||
Height | Width | Depth |
---|---|---|
321/2" | 533/4" | 201/2" |
Framing Dimensions |
||
Height | Width | Depth |
37" | 57" | 21" |
Specifications
Specifications
Specifications |
||
Product Details |
||
Fuel Type: | Gas | |
---|---|---|
Vent Type: | Direct-Vent | |
Vent Size: | 4.5x7.5 | |
Ignition Type: | Electronic | |
Installation Type: | Zero-Clearance | |
Style: | Linear | |
Vent Inner Diameter: | 4.5 Inches | |
Vent Outer Diameter: | 7.5 Inches | |
Weight: | 298 lbs. | |
Model: | Natural Gas (NG) | Propane (LP) |
Max. (BTU/HR): | 22,000 BTU's | 20,000 BTU's |
Min. (BTU/HR): | BTU's | BTU's |

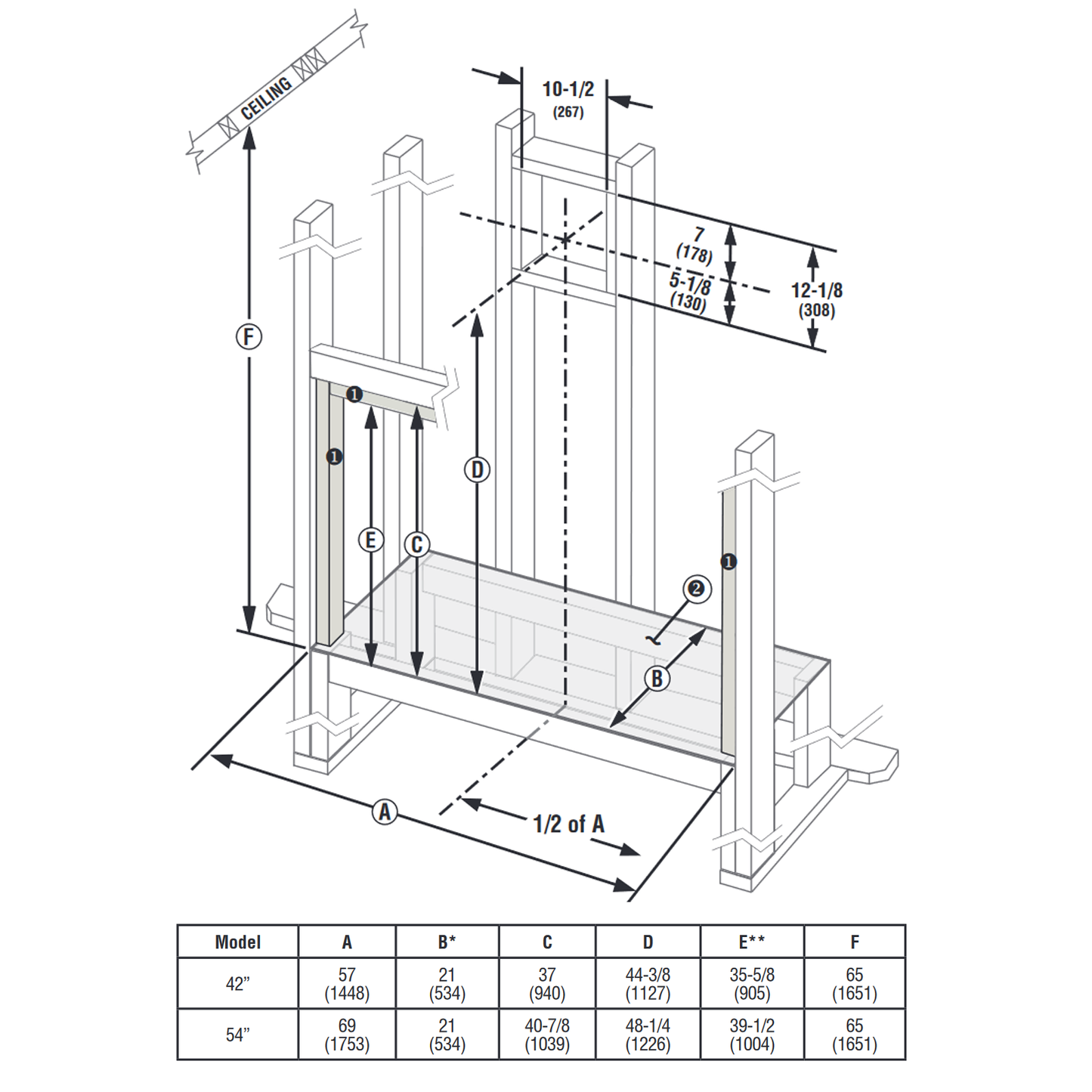

Technical Drawings
Technical Drawings


Installation Manual
Installation Manual
To Open the Installation Manual in another Window => Click Here
