Superior 60 Inch Contemporary Linear Direct Vent Gas Fireplace - DRL6060TEN
Superior 60 Inch Contemporary Linear Direct Vent Gas Fireplace - DRL6060TEN
SKU:DRL6060TEN-B
Financing available through Affirm at checkout.
IN STOCK | USUALLY SHIPS IN 1-3 DAYSFree Shipping on Orders $500+ · Shipping Details
Returns: 30 days on new, unused items in original packaging. 20% restocking fee; you pay return shipping. Special-order and final-sale items are not returnable. See Return Policy
Couldn't load pickup availability
YOUR LOCAL AUTHORITY HAVING JURISDICTION MAY ENFORCE BUILDING CODES UNIQUE TO YOUR LOCALE.
REMEMBER: CONFORMITY TO YOUR LOCAL BUILDING CODES IS ULTIMATELY YOUR RESPONSIBILITY. THUS, THE IMPORTANCE OF WORKING WITH PROFESSIONALS LICENSED BY YOUR STATE LICENSING BODY.
The DRL6060 linear direct vent gas fireplace is at home in both contemporary and transitional spaces. The expansive ceramic glass opening provides an exceptional view of the fire while the floor lighting allows you to enhance the mood. The DRL6060 is a fully featured fireplace that comes complete with a heat circulating blower and multi-function remote for the ultimate in comfort and control.
Features
- See all available accessories here
- Up to 40,000 BTUs
- See-through conversion kit available to allow viewing from two living spaces
- HeatFlo kit option allows heat to be directed above heat sensitive wall hangings
- Electronic ignition with battery backup provides continued operation in the event of a power outage
- Six flame settings with up to a 30% turn down for precise heat control
- Outstanding heating efficiency for increased comfort and lower operating costs
- Clean-face design with integrated tile stops for easy finishing
- Ceramic glass for optimum heat transfer and a protective screen
- Factory installed blower with six speed settings to fine tune your heating needs
- Black porcelain liner interior for a reflective view of the fire
- Platinum crushed glass media included with several optional colors available
- Mood enhancing floor lighting enhances the fireplace interior with or without a fire
- Multi-function remote included (IPI/CPI, thermostat, flame height, blower, lighting)
Dimensions
Dimensions
Actual Dimensions |
||
| Height | Width | Depth |
|---|---|---|
| 481/4" | 74" | 191/4" |

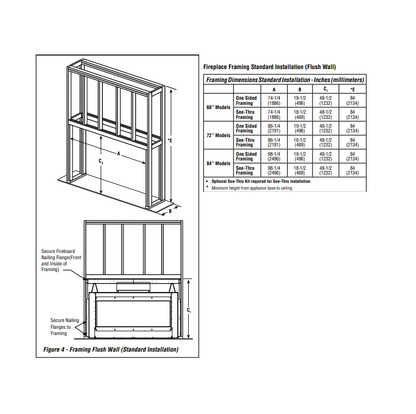

Framing Dimensions |
||
| Height | Width | Depth |
| 481/2" | 741/4" | 191/2" |
Specifications
Specifications
| Fuel Type: | Gas | |
|---|---|---|
| Vent Type: | Direct-Vent | |
| Vent Size: | 6x9 | |
| Ignition Type: | Electronic | |
| Installation Type: | Zero-Clearance | |
| Style: | Linear | |
| Vent Inner Diameter: | 6 Inches | |
| Vent Outer Diameter: | 9 Inches | |
| Weight: | 143 lbs. | |
| Model: | Natural Gas (NG) | Propane (LP) |
| Max. (BTU/HR): | 40,000 BTU's | 40,000 BTU's |
| Min. (BTU/HR): | 28,000 BTU's | 28,000 BTU's |

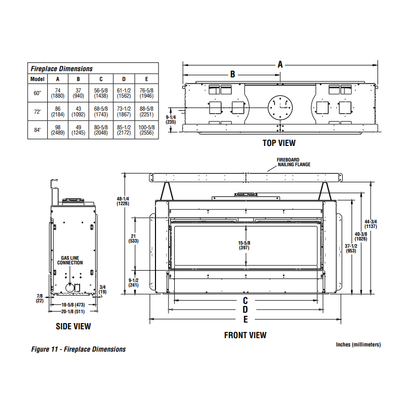

Technical Drawings
Technical Drawings
Installation Manual
Installation Manual
To Open the Installation Manual in another Window => Click Here
Warranty Policy
Warranty Policy
Exclusions from Warranty Coverage
- Provision of warranty services at the customer's location (on-site or in-home).
- Costs associated with removing parts prior to replacement.
- Installation of replacement parts or complete units.
- Labor expenses for diagnosing issues with potentially defective components.
- Initial installation costs and labor associated with installing warranty replacement parts.
To Open the Warranty Policy in another Window => Click Here
